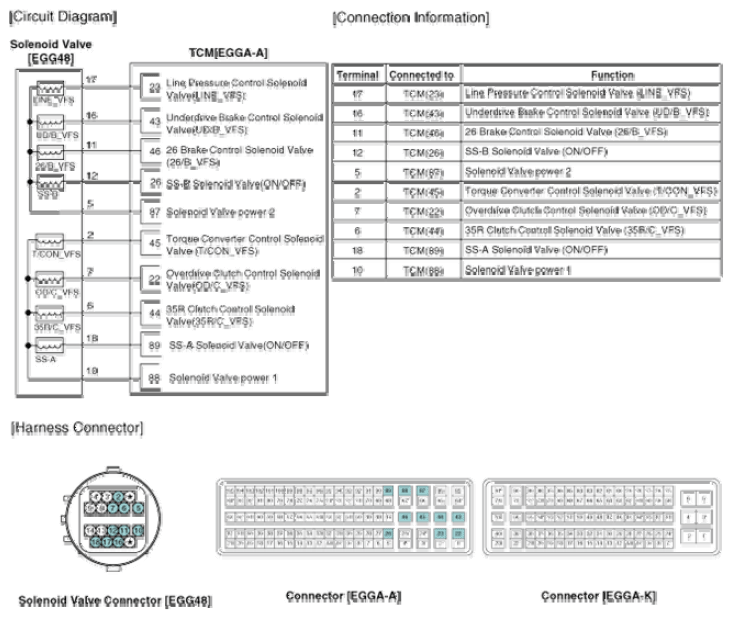

Home › Kia › 2013 › Soul Base, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 1.6L › Components and Components Location › Line Pressure Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
