ASP Calibration
Select "Steering Angle Sensor".
Proceed with the test according to the screen introductions.

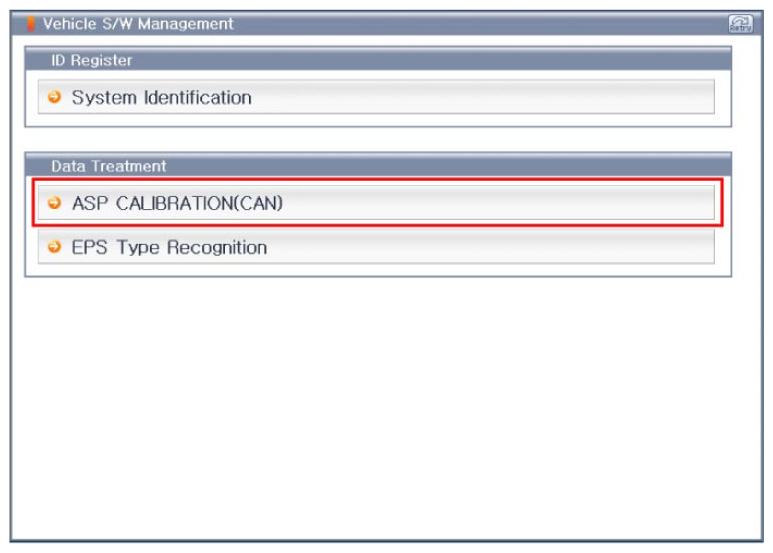

Fig 1: Display - Data Treatment Of ASP Calibration (CAN)
Courtesy of KIA MOTORS AMERICA, INC.

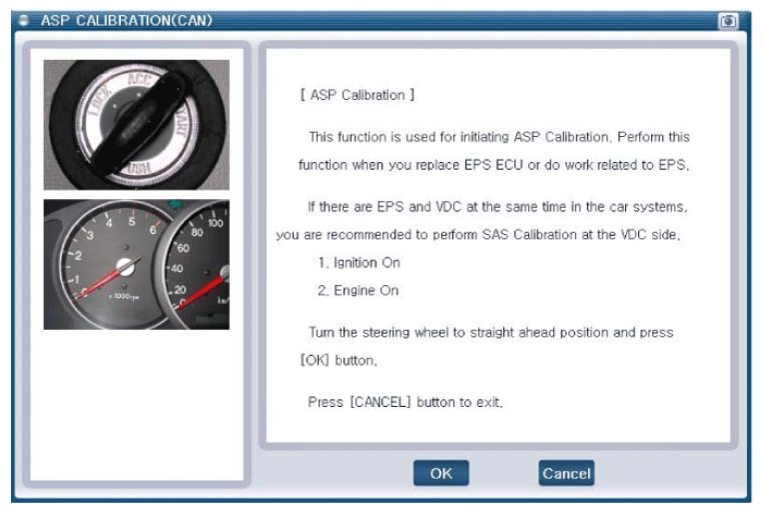

Fig 2: Display - ASP Calibration (CAN) Screen
Courtesy of KIA MOTORS AMERICA, INC.
