Variant Coding

Connect the GDS to the data link connector.
Turn the ignition "ON".
Select vehicle name and system.
Select the variant coding.

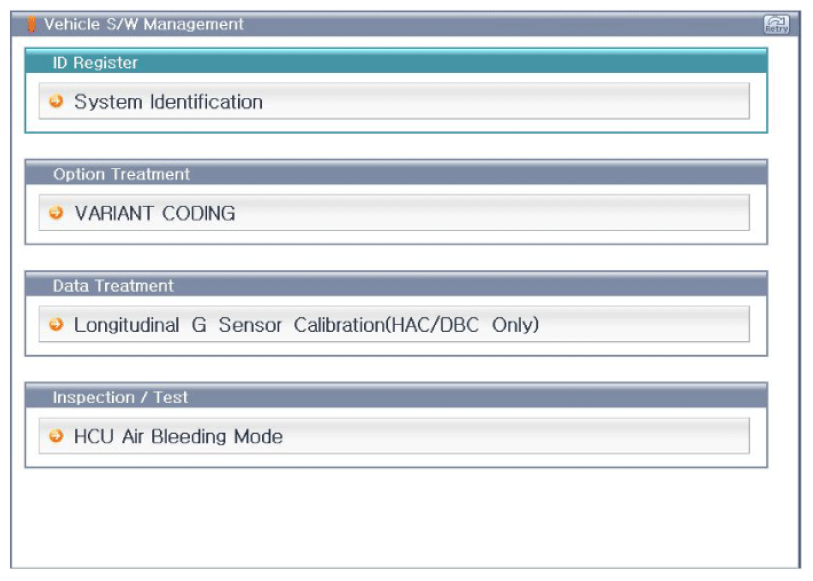

Fig 1: Display - System Identification Screen
Courtesy of KIA MOTORS AMERICA, INC.
Perform variant coding according to the instructions on the screen.

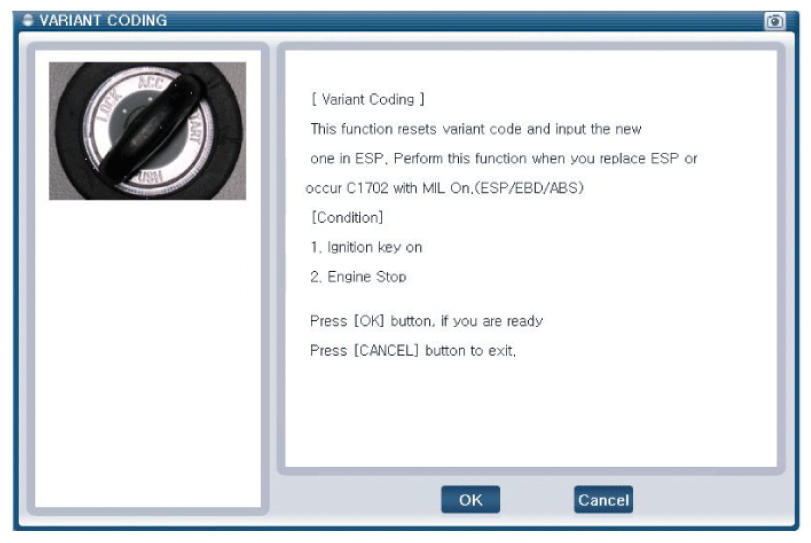

Fig 2: Display - Variant Coding Screen
Courtesy of KIA MOTORS AMERICA, INC.

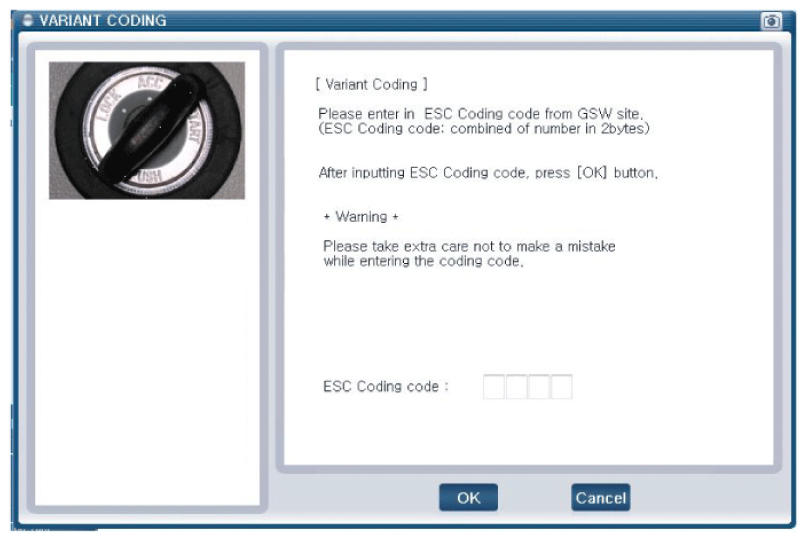

Fig 3: Display - ESC Coding Code Screen
Courtesy of KIA MOTORS AMERICA, INC.
Ignition "OFF" and then ignition "ON".
The variant coding is completed.
