Floor Console Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

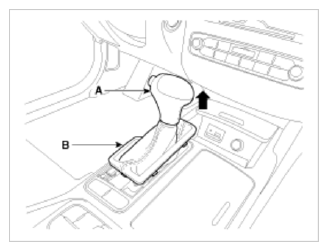

Using a screwdriver or remover, remove the gear boots (B).
To remove the gear knob (A) and gear boots (B) pull both of it up.

Fig 1: Removing Gear Knob
Courtesy of KIA MOTORS AMERICA, INC.

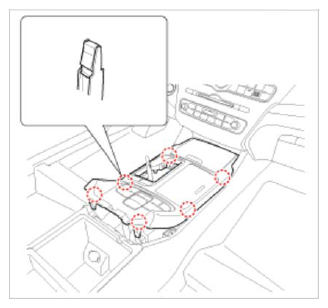

Using a screwdriver or remover, remove the floor console upper cover (A).

Fig 2: Identifying Floor Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the floor console upper cover.
[Rear]

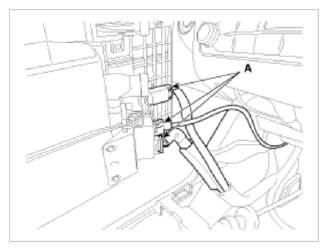

Fig 3: Identifying Floor Console Upper Cover Connectors (Rear)
Courtesy of KIA MOTORS AMERICA, INC.

[Front]

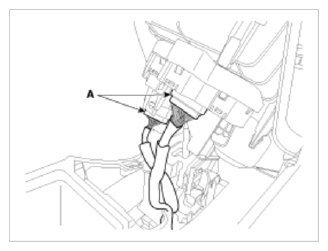

Fig 4: Identifying Floor Console Upper Cover Connectors (Front)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console armrest tray (A).

Fig 5: Identifying Console Armrest Tray
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console tray met (A).

Fig 6: Identifying Console Tray Met
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the console side cover (A).
[LH]

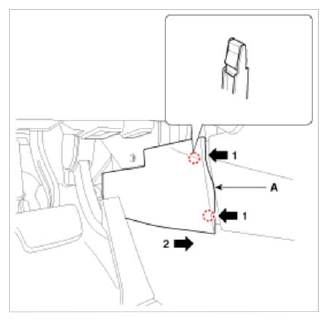

Fig 7: Removing Console Side Cover (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

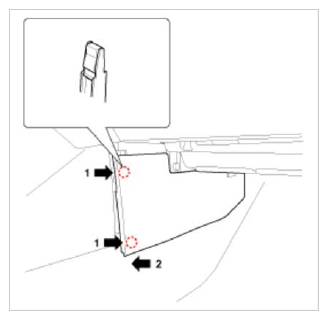

Fig 8: Removing Console Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

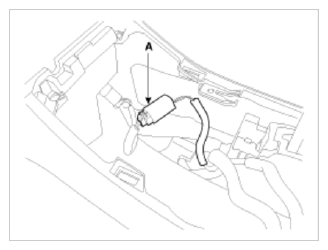

Disconnect the rear power outlet connector (A).

Fig 9: Identifying Rear Power Outlet Connector
Courtesy of KIA MOTORS AMERICA, INC.

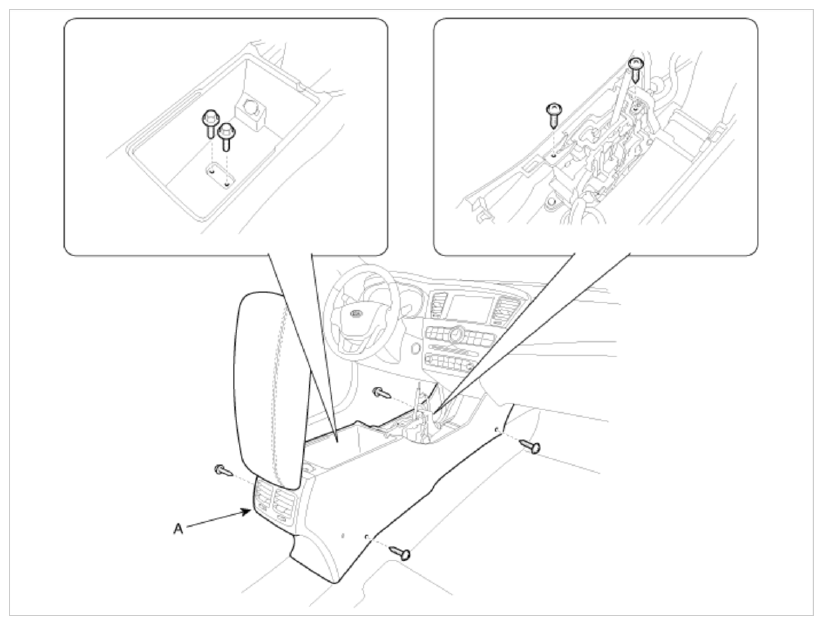

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 10: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
