Repair procedures: Replacement

NOTE:

Put on gloves to protect your hands.
When plying with a flat-tip screw river, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the trunk trim.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.

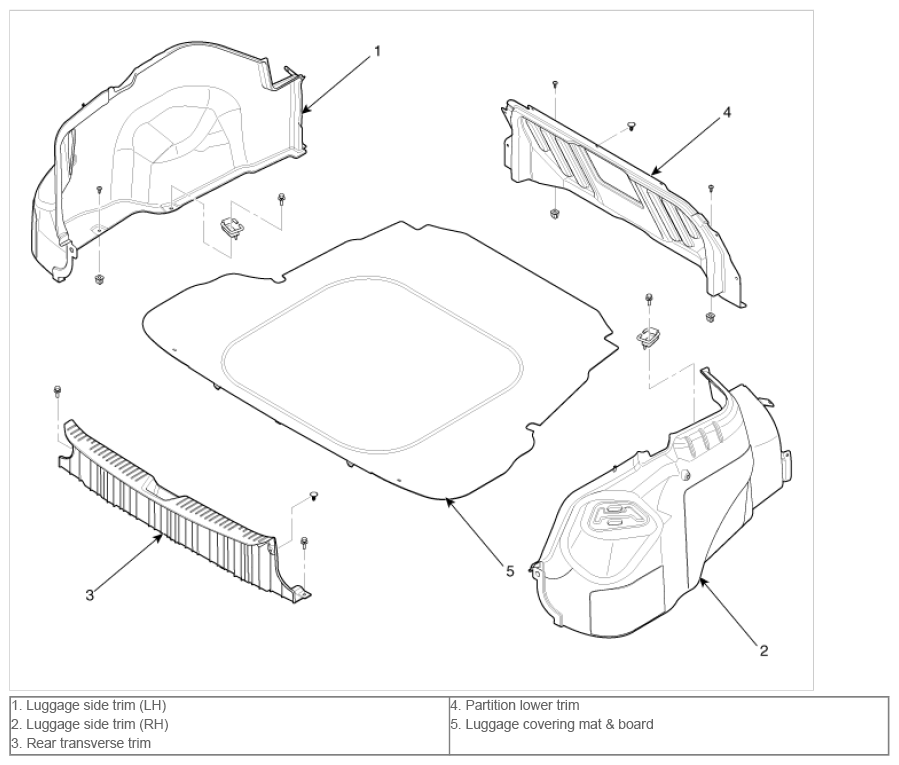

Fig 1: Identifying Luggage Side Trim, Rear Transverse Trim And Partition Lower Trim
Courtesy of KIA MOTORS AMERICA, INC.
