Driver Power Window Switch

  1. When checking the driver power window switch, select a vehicle type and "IPM" menu.
  2. Select "DDM (Driver Door Module)".
  3. Select option "Input/Output monitoring".
    Fig 1: Selecting Driver Door Module
    G09752843Courtesy of KIA MOTORS AMERICA, INC.
  4. To check the input value of power window switch in force mode, select option "ACTUATION TEST".

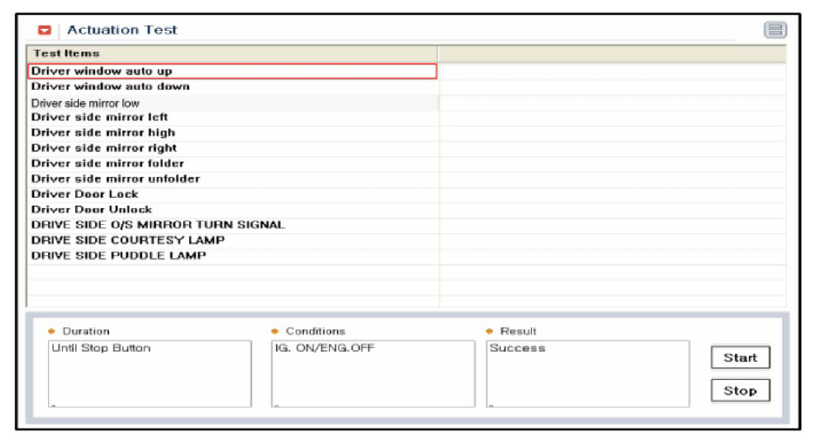

    Fig 2: Selecting Option Actuation Test Screen
    G09752845Courtesy of KIA MOTORS AMERICA, INC.
