Schematic Diagrams
›
Circuit Diagram
›
Passenger Power Window Switch
Passenger Power Window Switch

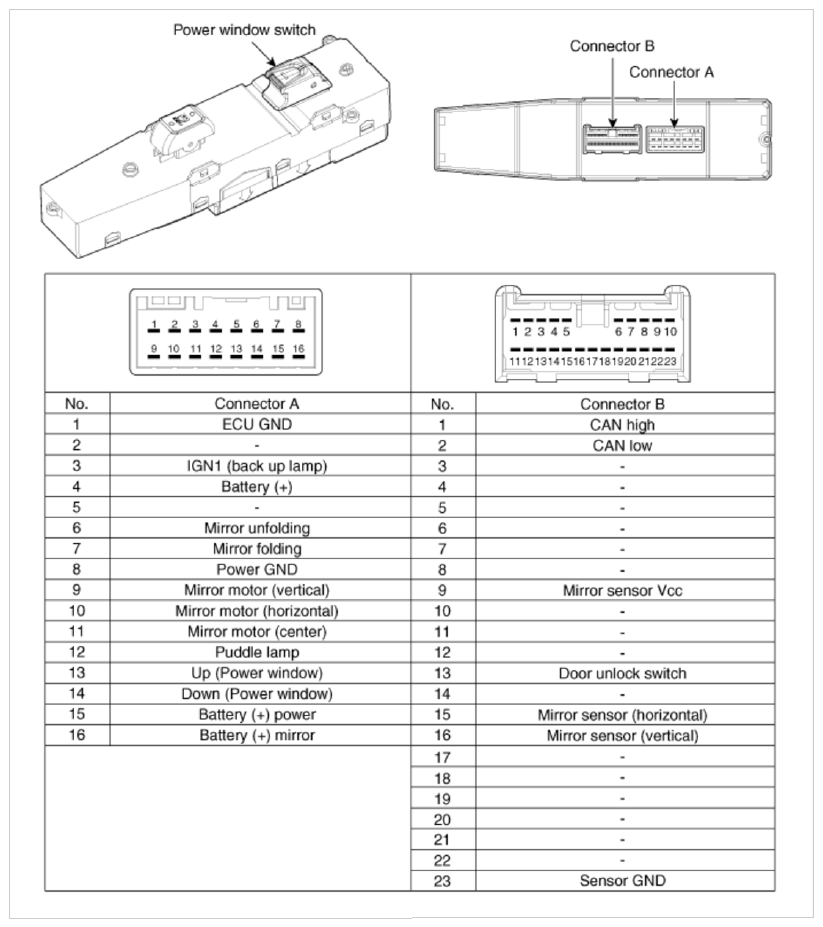

Fig 1: Passenger Power Window Switch Schematic Diagrams
Courtesy of KIA MOTORS AMERICA, INC.
