Schematic Diagrams
›
Circuit Diagram
›
Rear Power Window Switch
Rear Power Window Switch

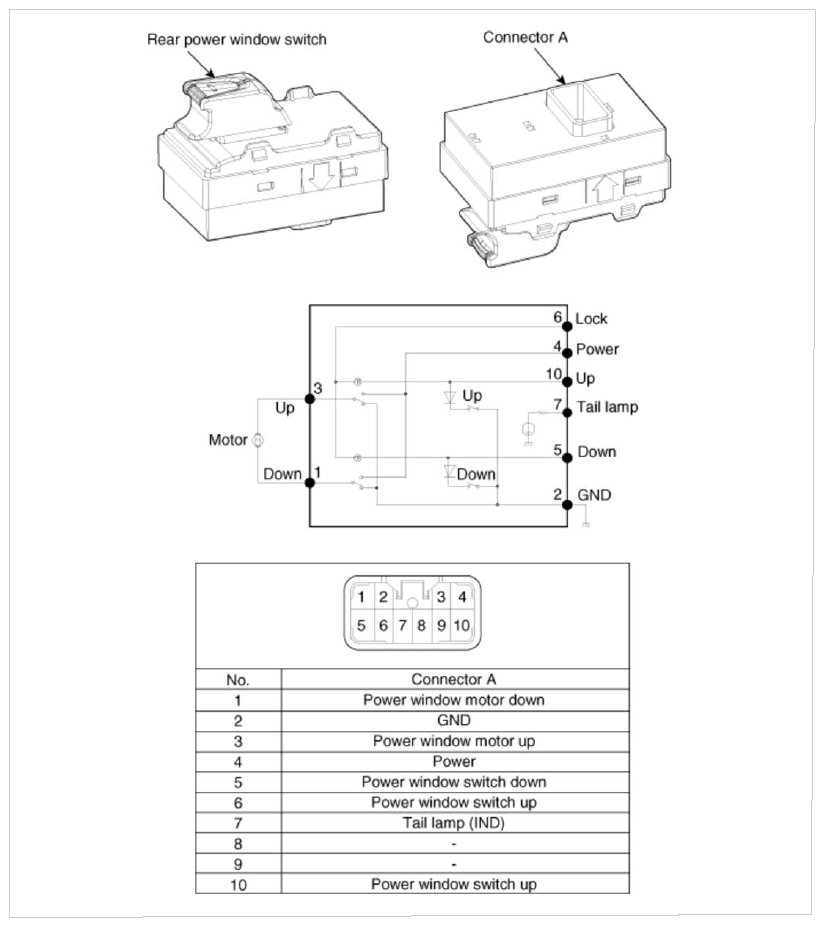

Fig 1: Rear Power Window Switch Schematic Diagrams
Courtesy of KIA MOTORS AMERICA, INC.
