Components and Components Location: Components

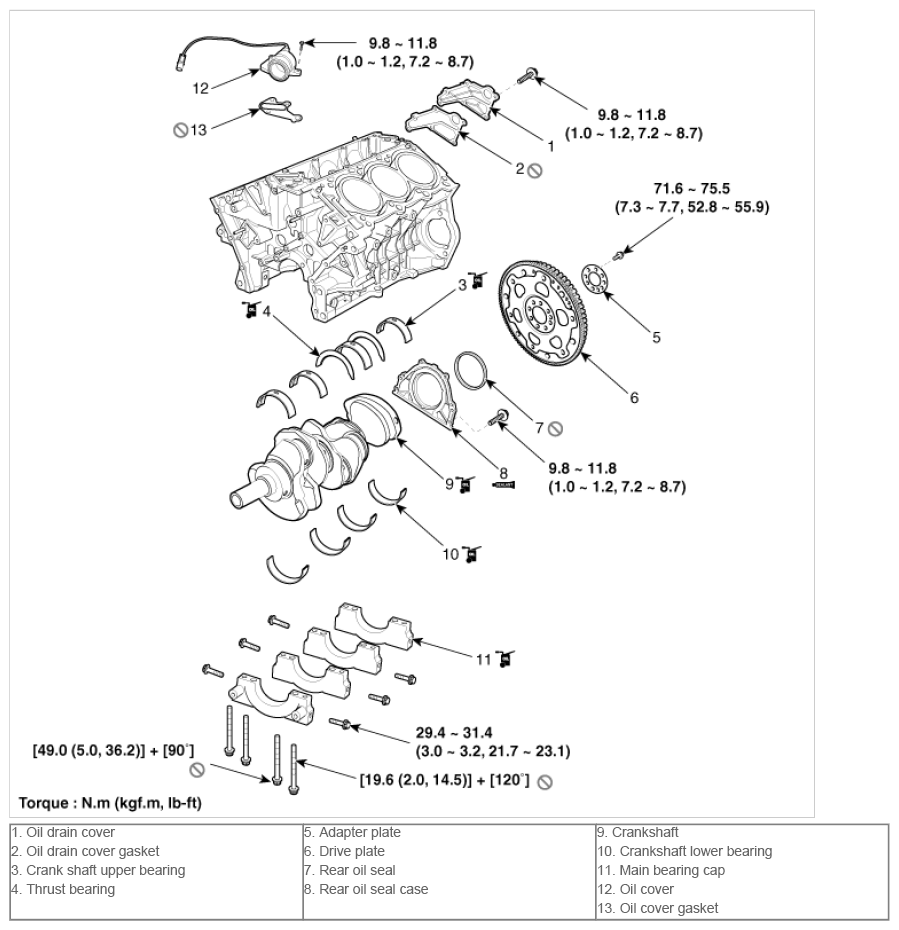

Fig 1: Identifying Cylinder Block Components

Courtesy of KIA MOTORS AMERICA, INC.

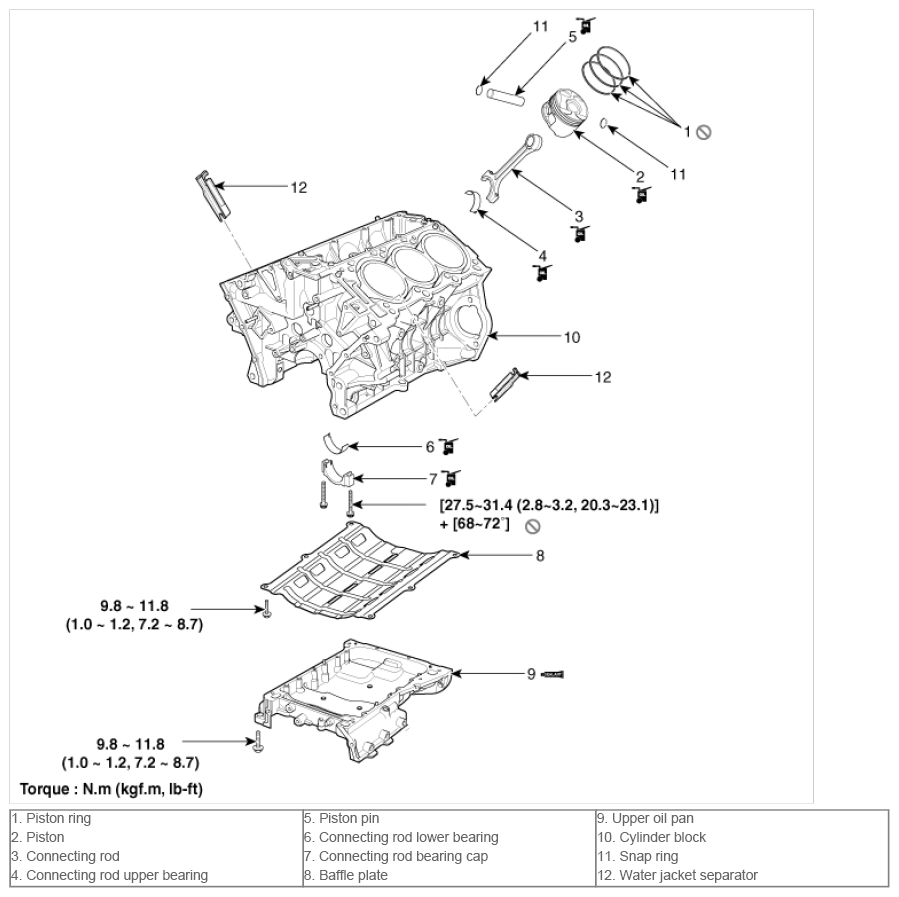

Fig 2: Identifying Cylinder Block Components

Courtesy of KIA MOTORS AMERICA, INC.
