Repair procedures: Removal

Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the floor mat after open the trunk.
Remove the fuel pump service cover (A) in the trunk.

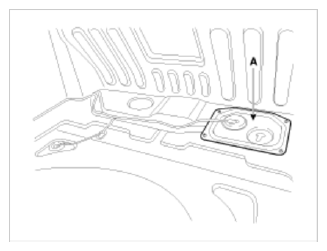

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of KIA
Disconnect the fuel pump control module & fuel pump extension connector (A).
Disconnect the fuel feed tube quick-connector (B).
Disconnect the fuel tank pressure sensor connector (C).
Disconnect the fuel tank tank pressure sensor connector (D).
Remove the fuel pump plate cover (E) after removing the bolts.
Remove the fuel pump from the fuel tank.

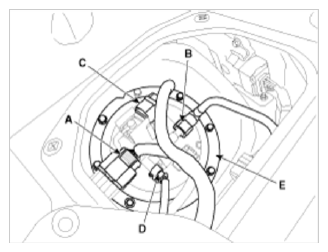

Fig 2: Identifying Fuel Feed Tube Quick, Control Module, Plate Cover And Fuel Tank Pressure Sensor Connector
Courtesy of KIA

Fig 3: Identifying Fuel Pump From Tank
Courtesy of KIA
