Repair procedures: Removal

Remove the fuel pump.
(Refer to "FUEL PUMP ")
Disconnect the fuel sender connector (A).

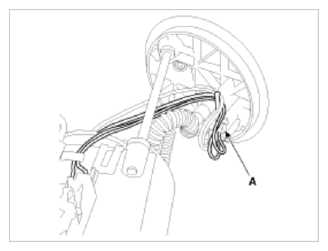

Fig 1: Identifying Fuel Sender Connector
Courtesy of KIA
Remove the fuel sender (A) after releasing the fix hook.

Fig 2: Removing Fuel Sender
Courtesy of KIA

Fig 3: Identifying Fuel Sender
Courtesy of KIA
