Engine Control System Diagnosis (3 Of 3)
›
DTC P0620: Alternator Control Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

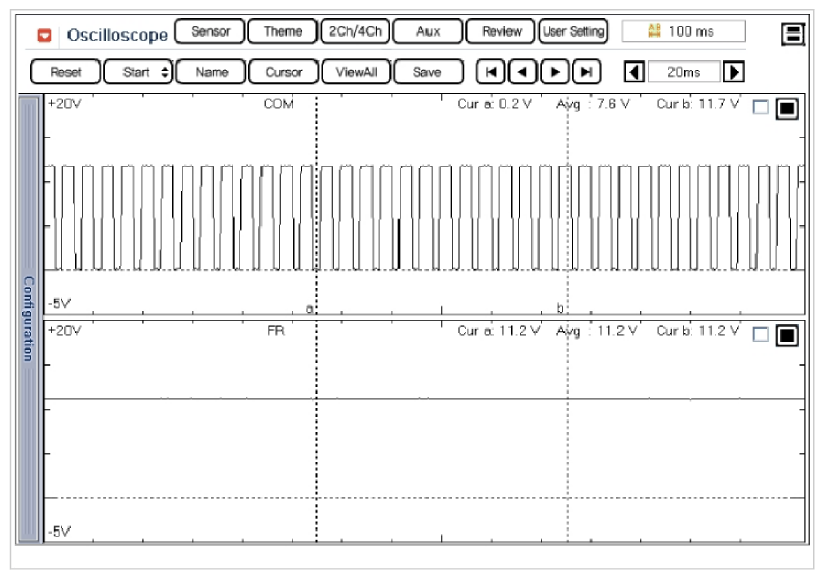

Fig 1: Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle Screen
Courtesy of KIA MOTORS AMERICA, INC.

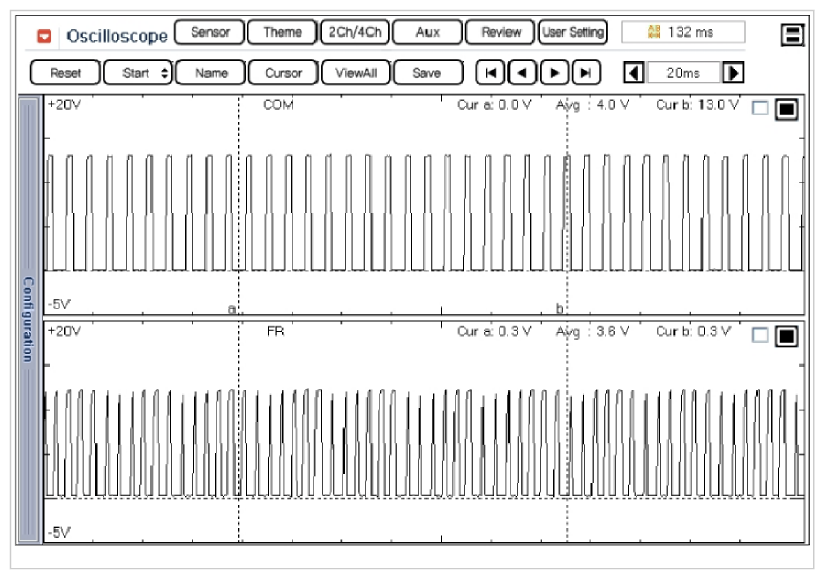

Fig 2: Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Connector Disconnected Condition At IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
