Signal Waveform & Data

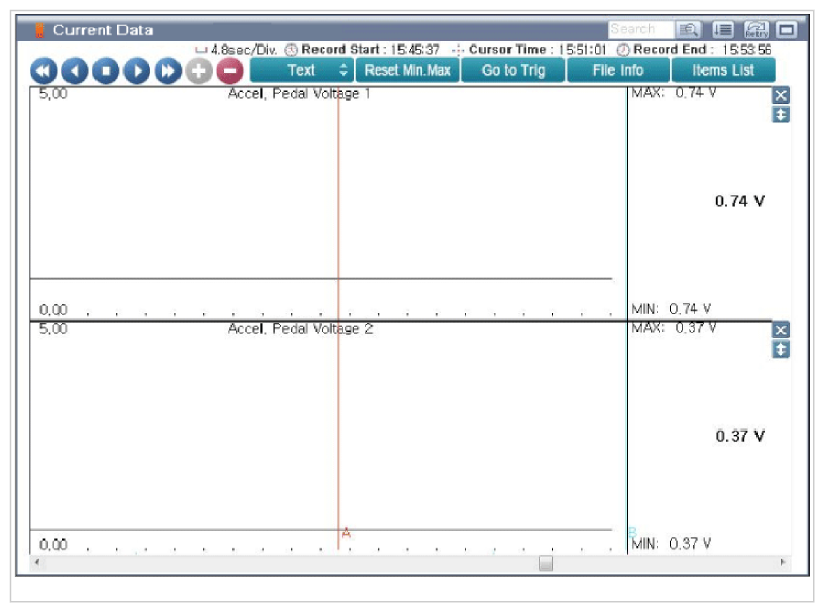

Fig 1: Display - Normal Graph Of APS1, APS2 With No Acceleration Screen

Courtesy of KIA MOTORS AMERICA, INC.

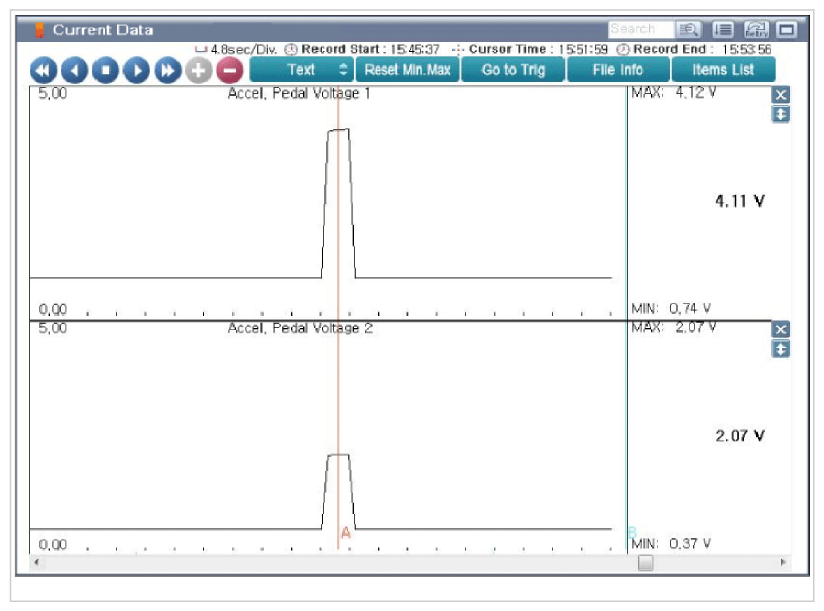

Fig 2: Display - Normal Graph Of APS1, APS2 With Acceleration (W.O.T) Screen

Courtesy of KIA MOTORS AMERICA, INC.

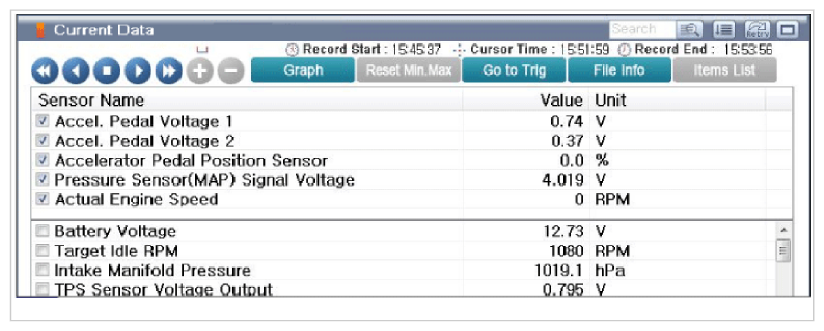

Fig 3: Display - Normal Data Of APS1, APS2 At IG ON Screen

Courtesy of KIA MOTORS AMERICA, INC.

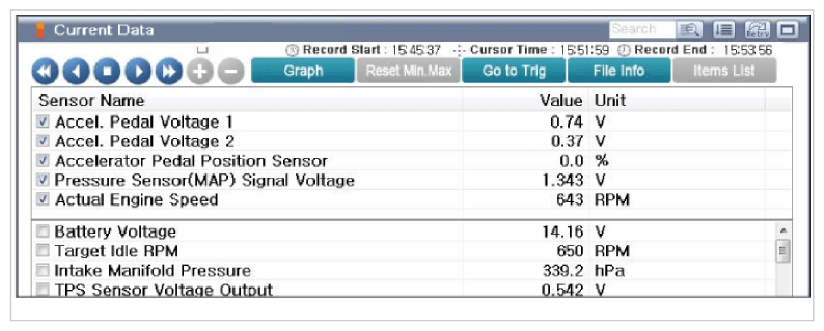

Fig 4: Display - Normal Data Of APS1, APS2 At Idle Screen

Courtesy of KIA MOTORS AMERICA, INC.

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
