Repair Procedures: Removal

Remove the tire.
Remove the foreign substance from wheel.
Discharge the air to the tire air inlet (A).

Fig 1: Identifying Tire Air Inlet
Courtesy of KIA MOTORS AMERICA, INC.

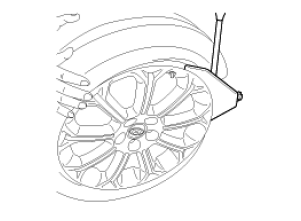

Install the bead brake from the tire and then remove the tire rim by stepping slide bar, a pedal.

Fig 2: Installing Bead Brake From Tire
Courtesy of KIA MOTORS AMERICA, INC.
Carrying out the operation of the brake beads in various places until the fall tire completely from the rim.
Put on the wheel turn table and then, fixed to the turntable wheel by stepping slide bar, a pedal.
Install the rim of the wheel head mounting and then fixed.

Fig 3: Installing Rim Of Wheel Head Mounting
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When mounting head install, by mounting the part of the left.

NOTE: Mounted on the right side of the TPMS sensor mounting head when the turntable is rotated counterclockwise.
Install the lever and then located to top tire between.

Fig 4: Installing Lever
Courtesy of KIA MOTORS AMERICA, INC.
By stepping turntable pedal, rotated clockwise the turntable and then separate from the wheel outside the tire.
Inside of the tire, it is to remove the tire from the wheel in the same way as No. 10.

Fig 5: Removing Tire From Wheel
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
