Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "FRONT DOOR ")

  3. Remove the IMS switch connector (A) from door trim panel.

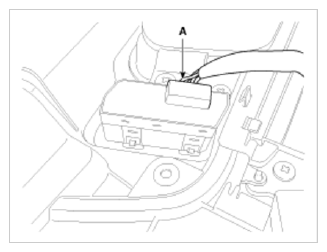

    Fig 1: Identifying IMS Switch Connector From Door Trim Panel
    G09752697Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the IMS control switch.
