Trunk Antenna

Disconnect the negative(-) battery terminal.
Remove the trunk transverse trim.
(Refer to "INTERIOR TRIM ")
Disconnect the trunk antenna connector (A) and remove the trunk antenna (B) after loosening nut (2EA).

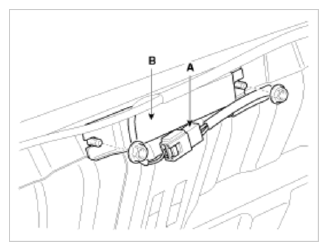

Fig 1: Identifying Trunk Antenna And Connector
Courtesy of KIA MOTORS AMERICA, INC.
