Repair Procedures: Replacement

Information

• When removing the clips, use a clip remover.

1. Remove the head lamps.

   (Refer to "HEAD LAMPS ")

2. Remove the quarter fixed glass.

   (Refer to "QUARTER FIXED GLASS ")

3. Loosen the front wheel guard mounting clips and screws.

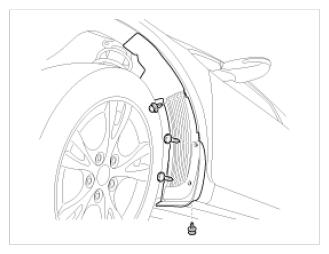

   Fig 1: Identifying Front Wheel Guard Mounting Clips And Screws

   Courtesy of KIA MOTORS AMERICA, INC.
4. After loosening the mounting screws, then remove the front bumper side mounting bracket (A).

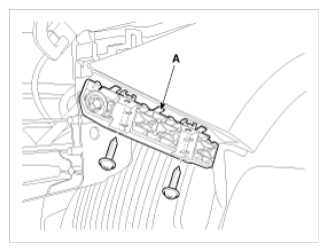

   Fig 2: Identifying Front Bumper Side Mounting Bracket And Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
5. After loosening the mounting bolts and nut, then remove the fender assembly (A).

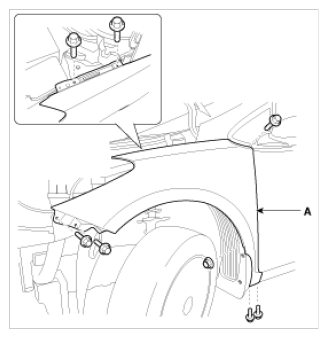

   Fig 3: Identifying Fender Assembly And Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
6. Install in the reverse order of removal.

   Information

   • Replace any damaged clips.
