Repair procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
1. Power seat control switch
2. Lumbar support switch

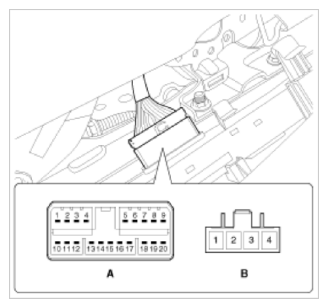

  Fig 1: Power Seat Control And Lumbar Support Switch Connector End Views
  Courtesy of KIA MOTORS AMERICA, INC.

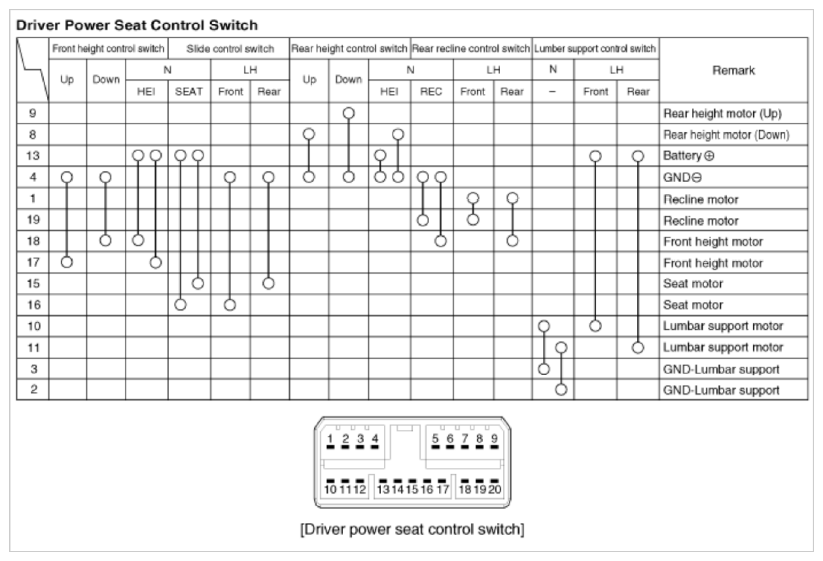

  Fig 2: Driver Power Seat Control Switch Continuity Reference Chart
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 3: Driver Lumbar Switch Continuity Reference Chart
  Courtesy of KIA MOTORS AMERICA, INC.
