Repair procedures: Removal

  1. Remove the front wheel and tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

  2. Remove the front wheel speed sensor mounting bolt (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

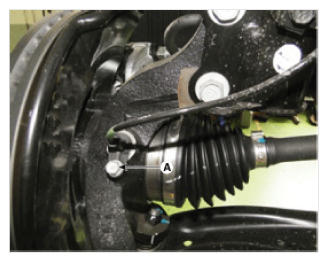

    Fig 1: Front Wheel Speed Sensor Mounting Bolt
    G09744511Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.
  4. Disconnect the front wheel speed sensor connector (A), and then remove the front wheel speed sensor.
    Fig 2: Front Wheel Speed Sensor Connector
    G09744512Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
