Repair Procedures: Removal

Disconnect the battery negative terminal.
Remove the drive belt.
(Refer to "DRIVE BELT ")
Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.

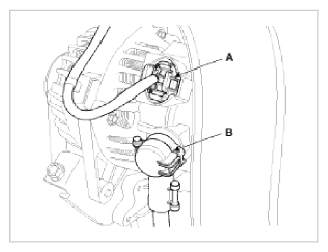

Fig 1: Identifying Alternator Connector & Cable
Courtesy of KIA MOTORS AMERICA, INC.
Pull out the through bolt and then remove the alternator (A).

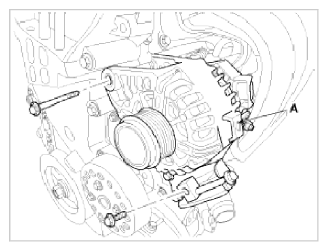

Fig 2: Identifying Alternator
Courtesy of KIA MOTORS AMERICA, INC.
