Charging System: Alternator

Item		Specification
Rated voltage		13.5V, 90A
Speed in use		1, 000 ~ 18, 000 rpm
Voltage regulator		IC Regulator built-in type
Regulator Setting Voltage	External mode	Refer to graph below
Regulator Setting Voltage	Internal mode	14.55 ± 0.3V
Temperature Gradient	External mode	0 ± 3 mV/°C
Temperature Gradient	Internal mode	-3.5 ± 2mV/°C

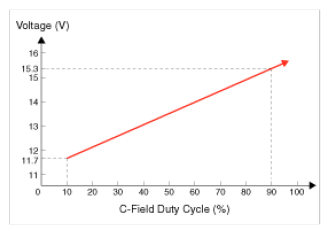

Fig 1: Voltage And C-Field Duty Graph

G09742780

Courtesy of KIA MOTORS AMERICA, INC.

* Regulator Setting Voltage (External mode)
