Signal Waveform & Data

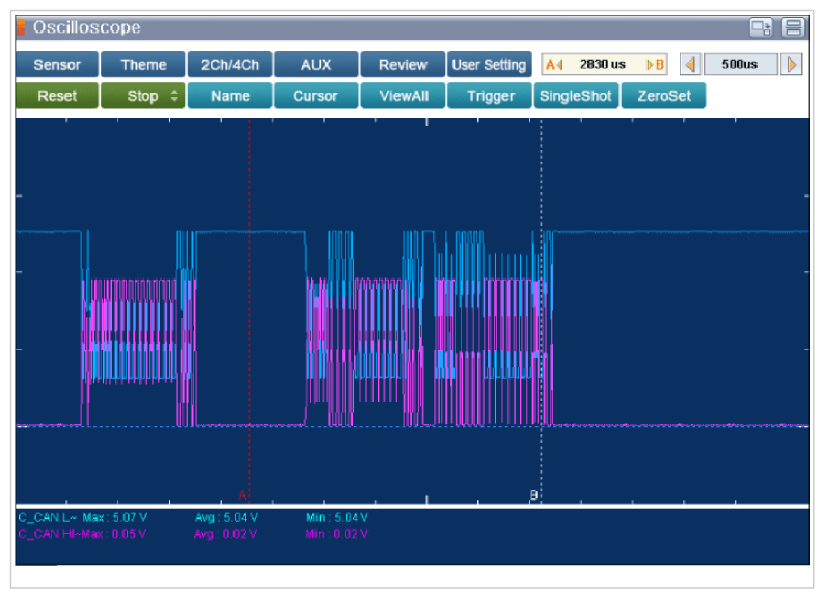

Fig 1: C-CAN Low & High Signal Waveform
G09745855Courtesy of KIA MOTORS AMERICA, INC.

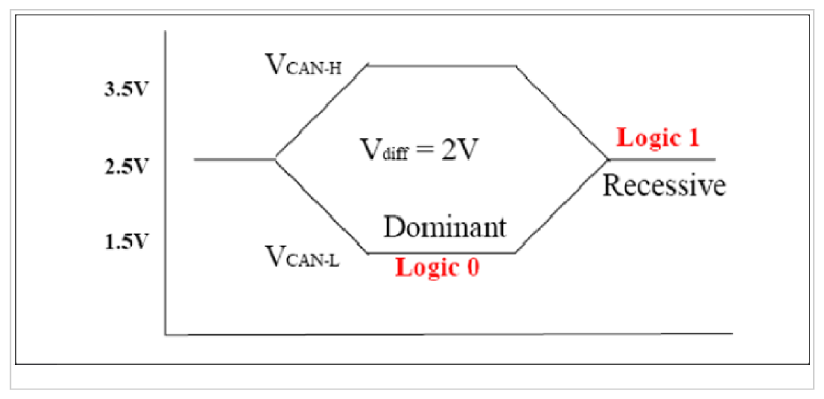

Fig 2: C-CAN BUS Voltage Level Graph (High Speed CAN)
G09745856Courtesy of KIA MOTORS AMERICA, INC.
