Repair Procedures: Inspection

Disconnect the battery negative terminal.
Remove the fuse box cover.
Remove the starter relay (A).

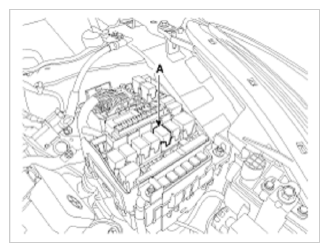

Fig 1: Identifying Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

Using an ohmmeter, check that there is continuity between each terminal.

Terminal	Value	Measure
30 - 87	1MΩ or Higher	If there is continuity, replace the relay.
85 - 86	continuity	If there is no continuity, replace the relay.

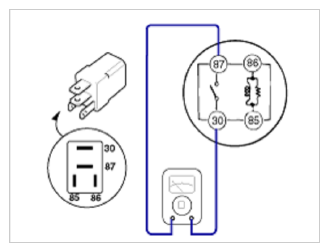

Fig 2: Checking Continuity Between Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Apply 12V to terminal 85 and ground to terminal 86.

Check for continuity between terminals 30 and 87.

Terminal	Continuity
30 - 87	Below 1Ω
85 - 86	Apply 12V

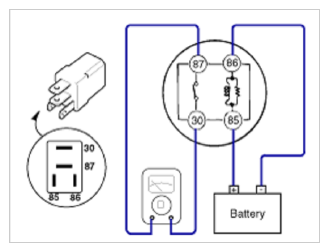

Fig 3: Checking Continuity Between Terminals 30 & 87

Courtesy of KIA MOTORS AMERICA, INC.
