Section 12 (Lubrication System - 1.8L)
›
Flow Diagram
›
Engine Oil Schematics
Engine Oil Schematics
WARNING:
This page is about a different variant/trim than selected.

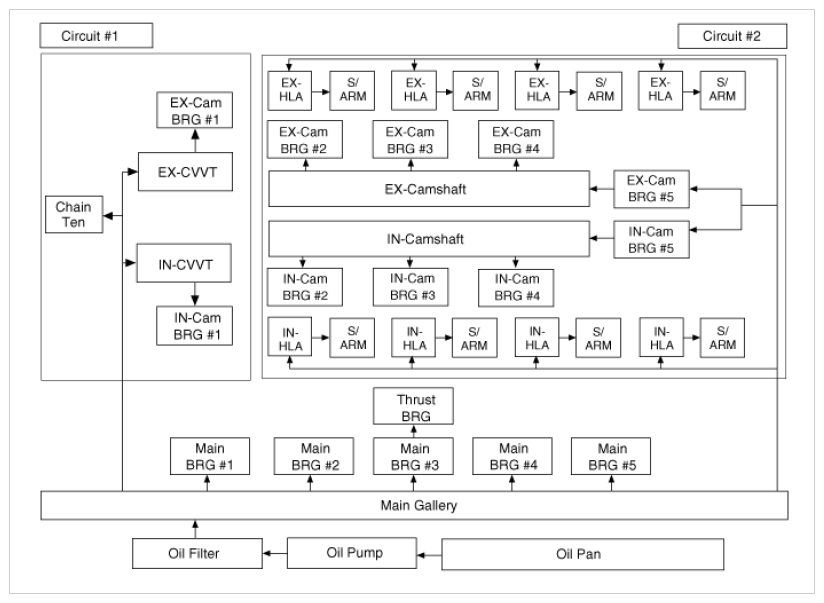

Fig 1: Engine Oil Schematics
Courtesy of KIA MOTORS AMERICA, INC.
