System Circuit Diagram

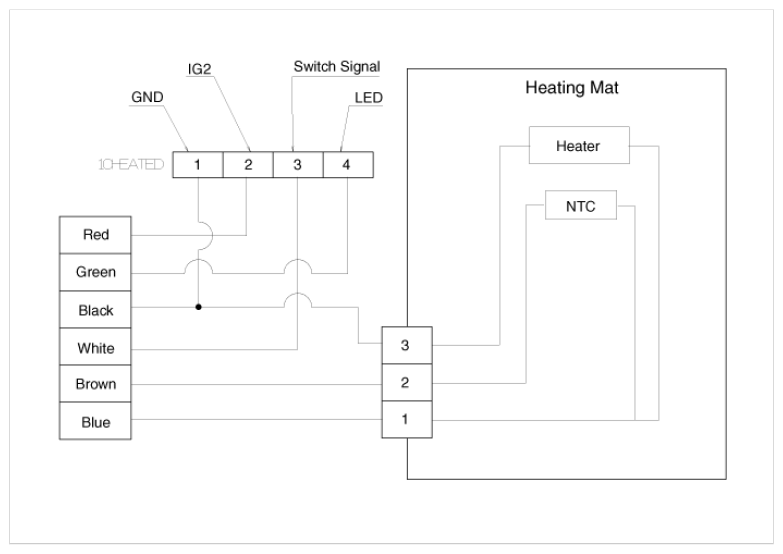

Fig 1: Heated Control Unit System Circuit Diagram
G09743599Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Heated Control Unit System Circuit Connector End View
G09743600Courtesy of KIA MOTORS AMERICA, INC.
WIRE COLOR TERMINAL REFERENCE

No. Function Wire color
1 GND Back
2 IG2 Red
3 Switch Signal White
4 LED Green
WIRE COLOR TERMINAL REFERENCE

No. Function Wire color
1 GND Back
2 NTC Brown
3 Heater (+) Blue
