Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- When installing, apply the ATF oil or white Vaseline to the O-ring (A) not to be damaged.

  Fig 1: O-Ring
  Courtesy of KIA MOTORS AMERICA, INC.
- The gasket of the valve body gasket (A) use new one.
- Adding automatic transaxle fluid.
  (Refer to "FLUID ")

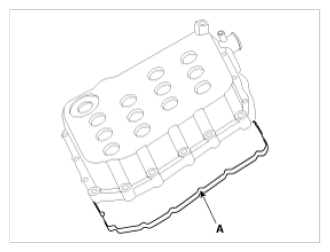

  Fig 2: Valve Body Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the automatic transaxle to prevent slow automatic transaxle response, jerky acceleration and jerky startup.
  (Refer to "Automatic transaxle control system (REPAIR PROCEDURES )" )
