Home › Kia › 2014 › Forte LX, Automatic Trans › Repair and Diagnosis › Body & Frame › Seats › Front Seat Assembly › Components and Components Location › Components

Components and Components Location: Components

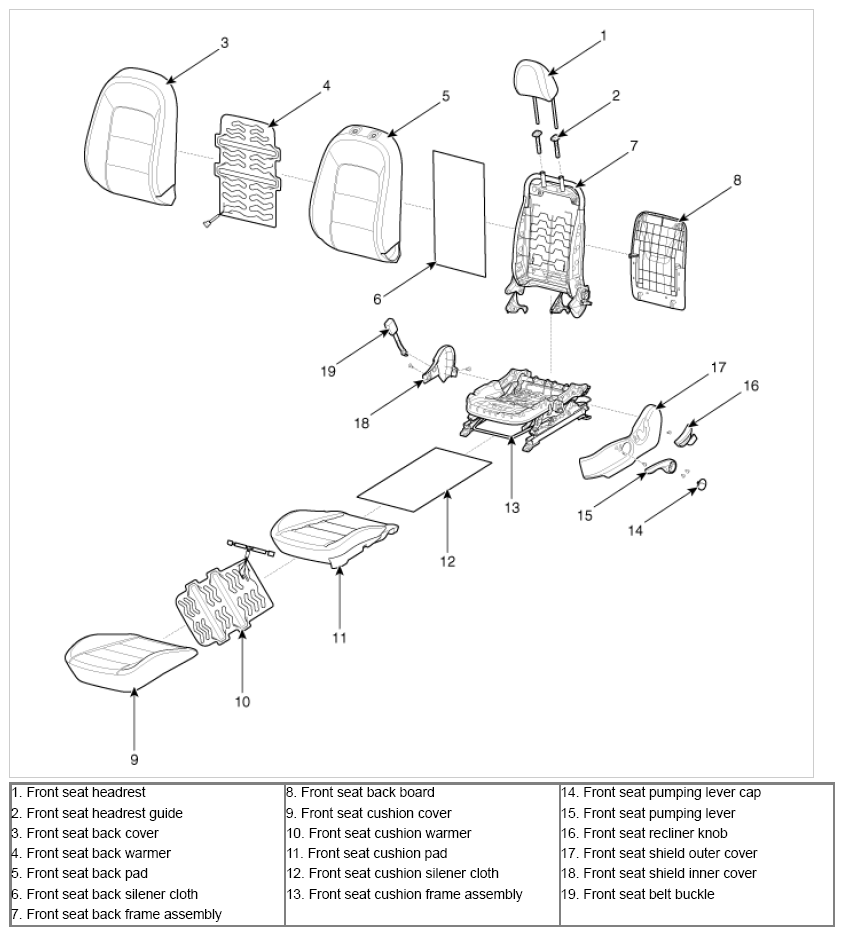

Fig 1: Front Seat Components
G09744089Courtesy of KIA MOTORS AMERICA, INC.
