Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

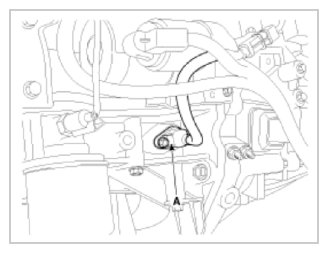

- Disconnect the crankshaft position sensor connector (A) and remove the sensor after removing the installation bolt.
Courtesy of KIA MOTORS AMERICA, INC.
