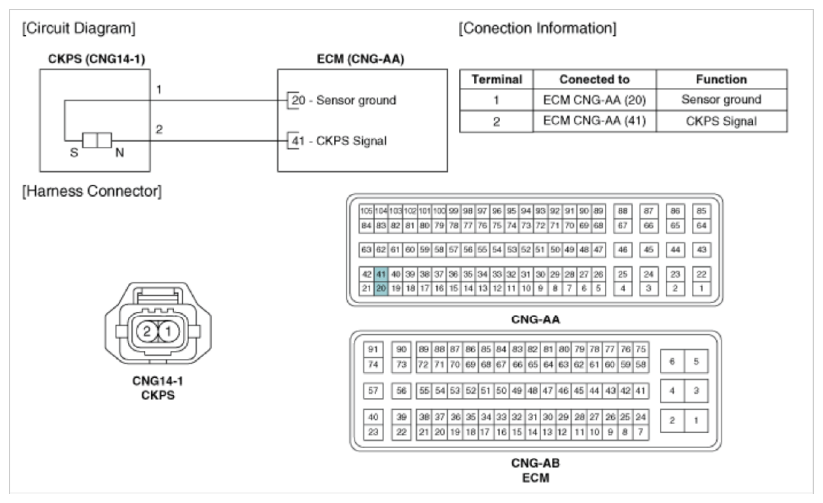

Home › Kia › 2014 › Forte LX, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.8L › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram › (A/T)
