Kia
›
2014
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.8L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

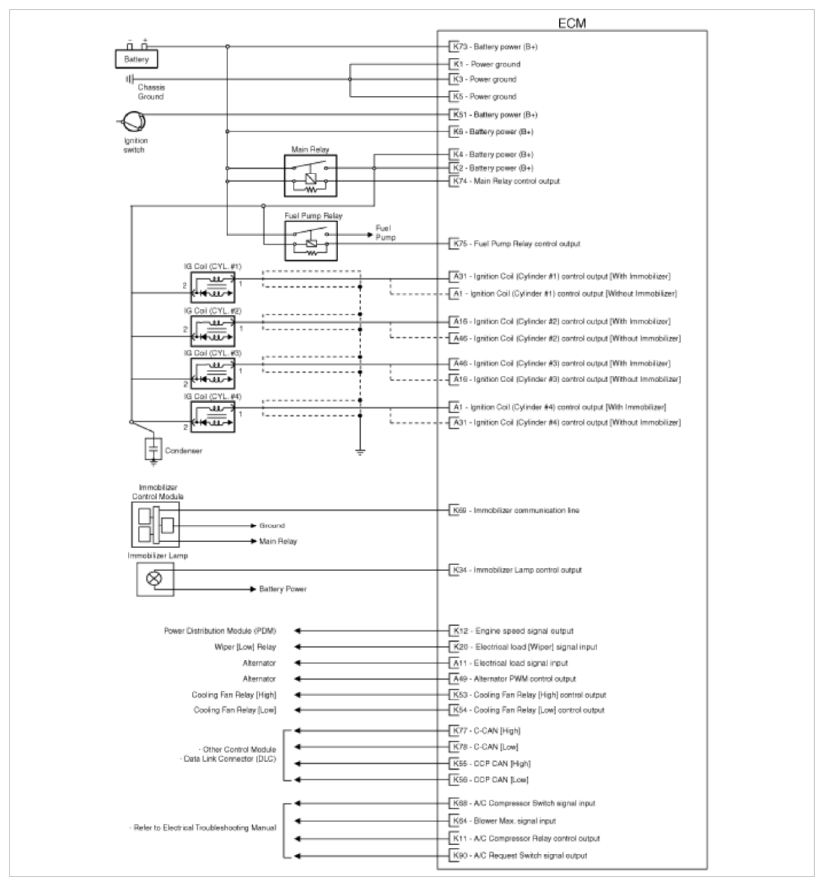

Fig 1: Engine Control Module (ECM) - Circuit Diagram - (M/T) (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

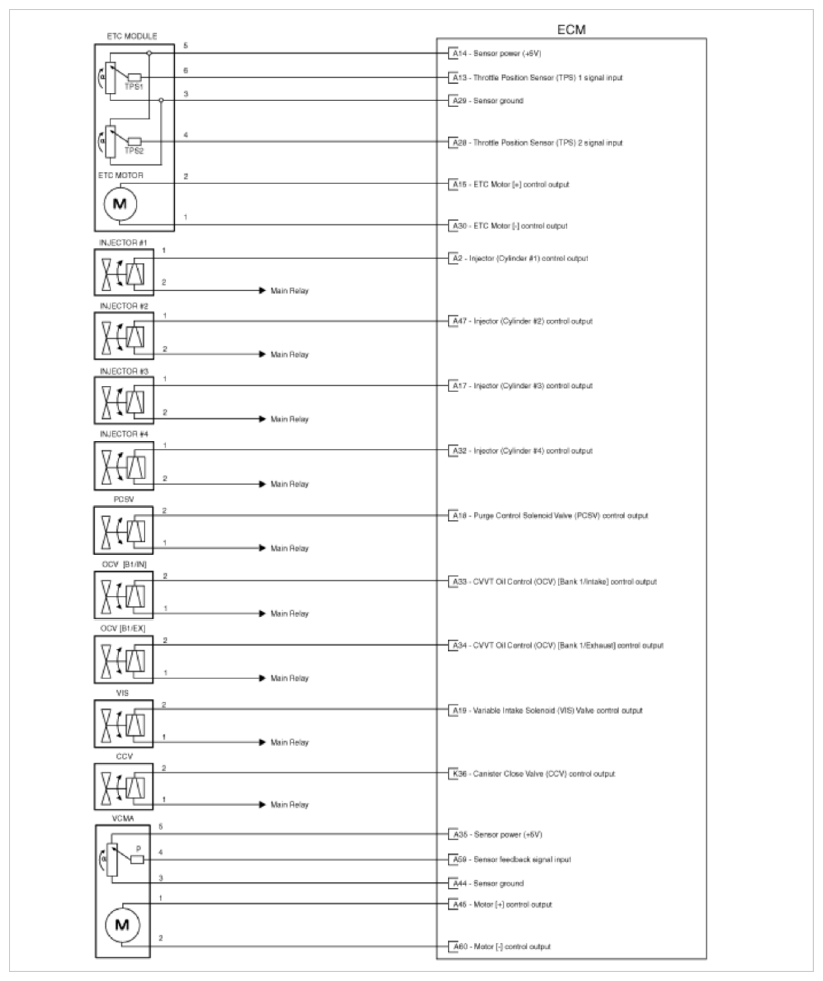

Fig 2: Engine Control Module (ECM) - Circuit Diagram - (M/T) (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

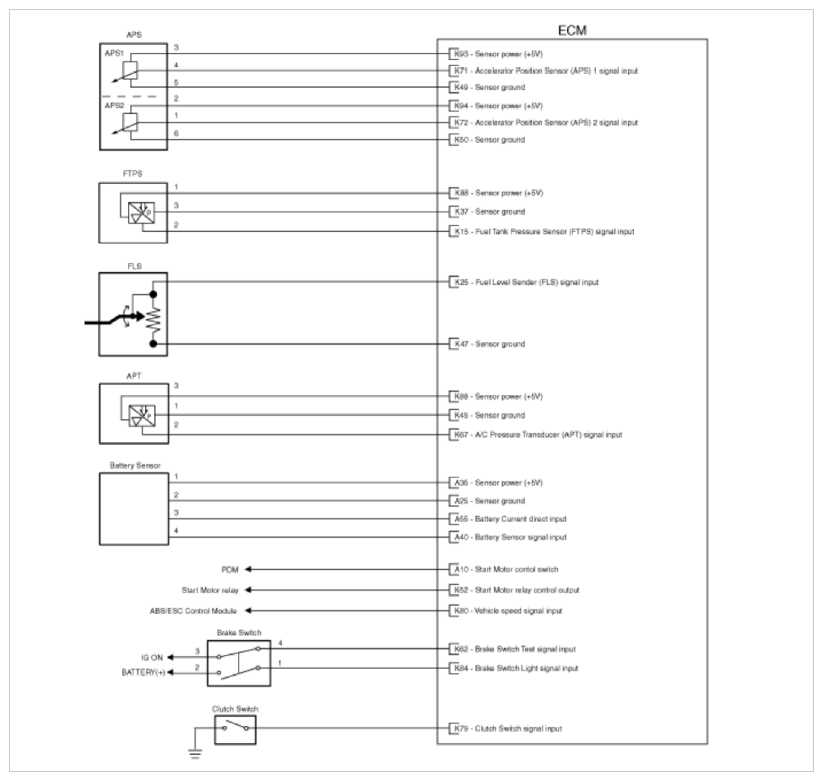

Fig 3: Engine Control Module (ECM) - Circuit Diagram - (M/T) (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

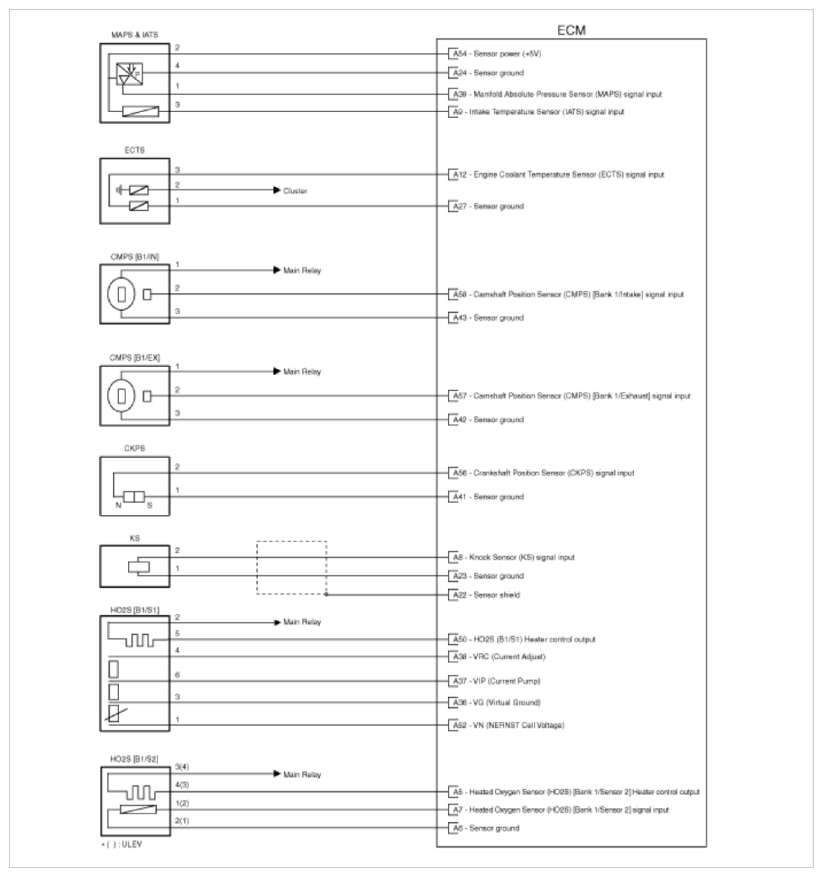

Fig 4: Engine Control Module (ECM) - Circuit Diagram - (M/T) (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
