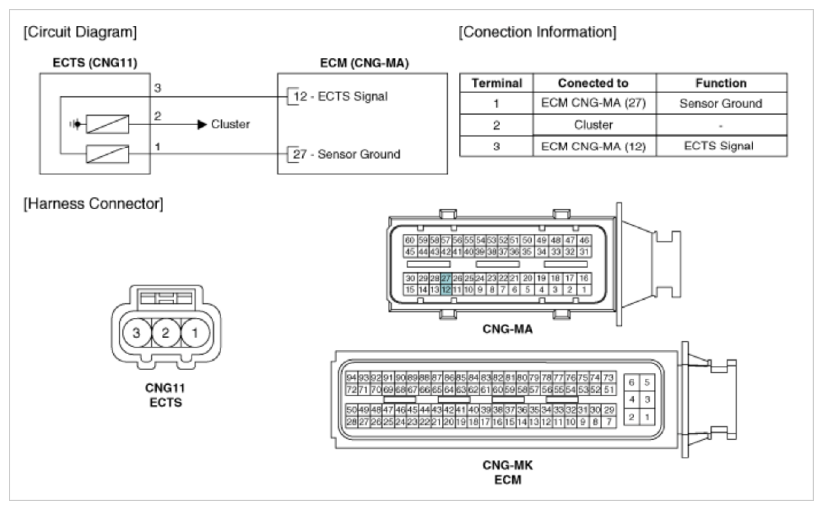

Home › Kia › 2014 › Forte LX, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.8L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram › (M/T)
