Idle Stop & Go (ISG) System - 1.8L
›
AGM Battery
›
Repair Procedures
›
Inspection
›
Battery Diagnostic Flow
Battery Diagnostic Flow

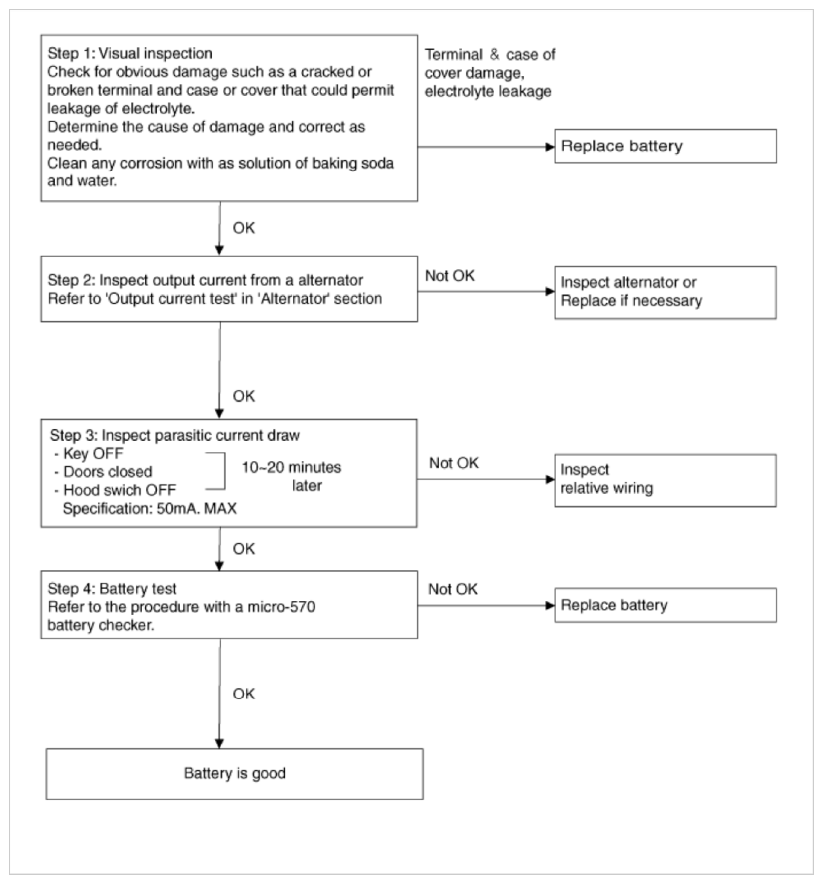

Fig 1: Battery Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
