Repair Procedures: Inspection

Remove the crash pad side switch assembly (A) from the switch panel on the crash pad of the driver's side.

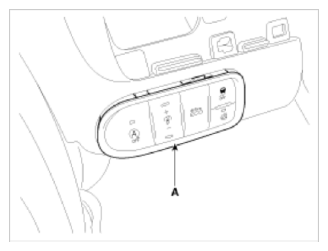

Fig 1: Locating Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ISG switch from the switch assembly.
Check the continuity between the switch 3 and 5 terminals as the ISG OFF switch is engaged.

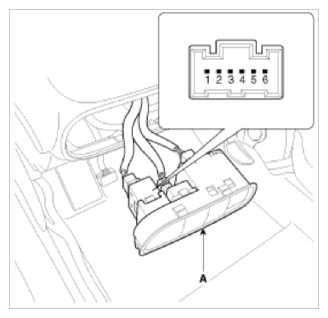

Fig 2: ISG Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Checking Continuity Between Switch 3 And 5 Terminals
Courtesy of KIA MOTORS AMERICA, INC.
