DTC P0605: Internal Control Module Read Only Memory (ROM) Error: ETM

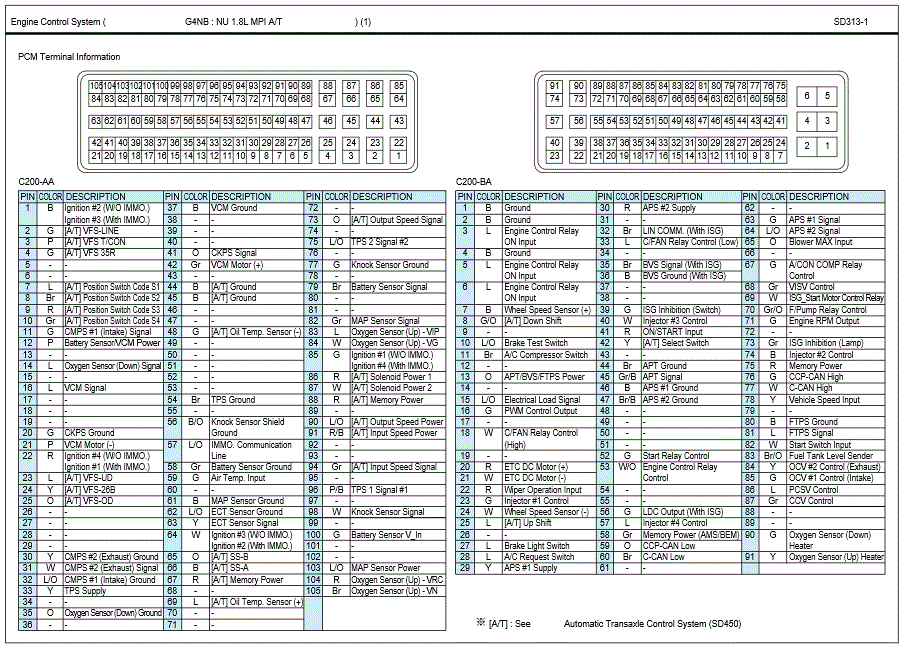

Fig 1: PCM Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

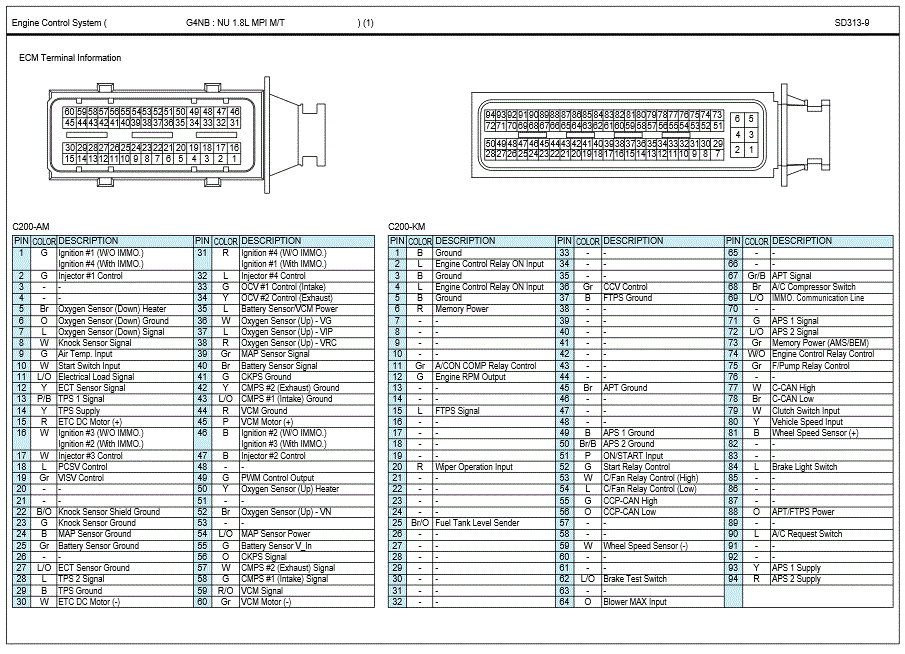

Fig 2: ECM Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

For wiring diagram information, refer to appropriate SYSTEM WIRING DIAGRAMS article.
