Components and Components Location: Component

WARNING: This page is about a different variant/trim than selected.

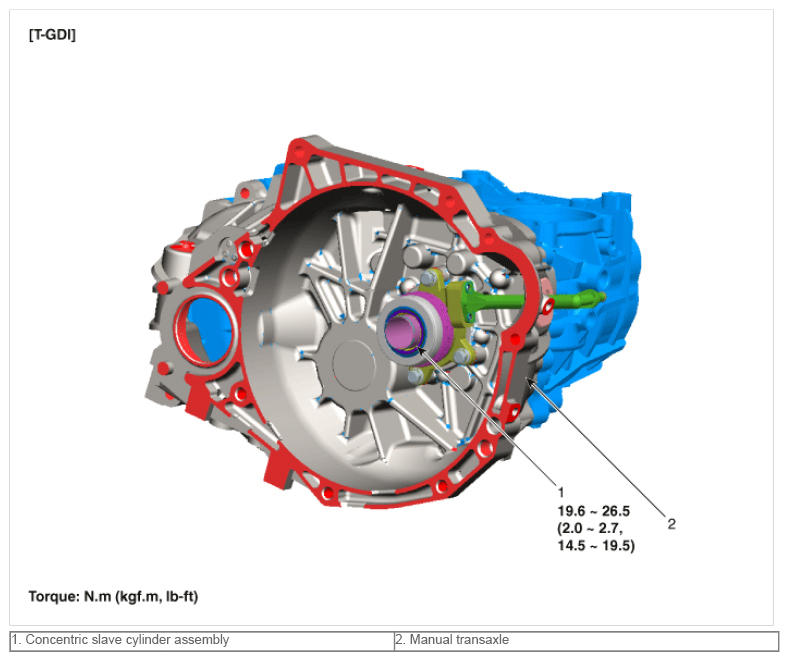

Fig 1: Concentric Slave Cylinder Assembly With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
