Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- Adding Automatic Transaxle Fluid (ATF).
  (Refer to "FLUID ")
- Perform Transaxle Control Module (TCM) learning after replacing the valve body to prevent slow transaxle response, jerky acceleration and jerky startup.
  (Refer to "REPAIR PROCEDURES ")
- Use new valve body gasket (A).

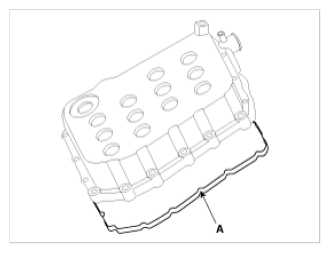

Fig 1: Identifying Valve Body Gasket
Courtesy of KIA MOTORS AMERICA, INC.
