Components and Components Location: Components

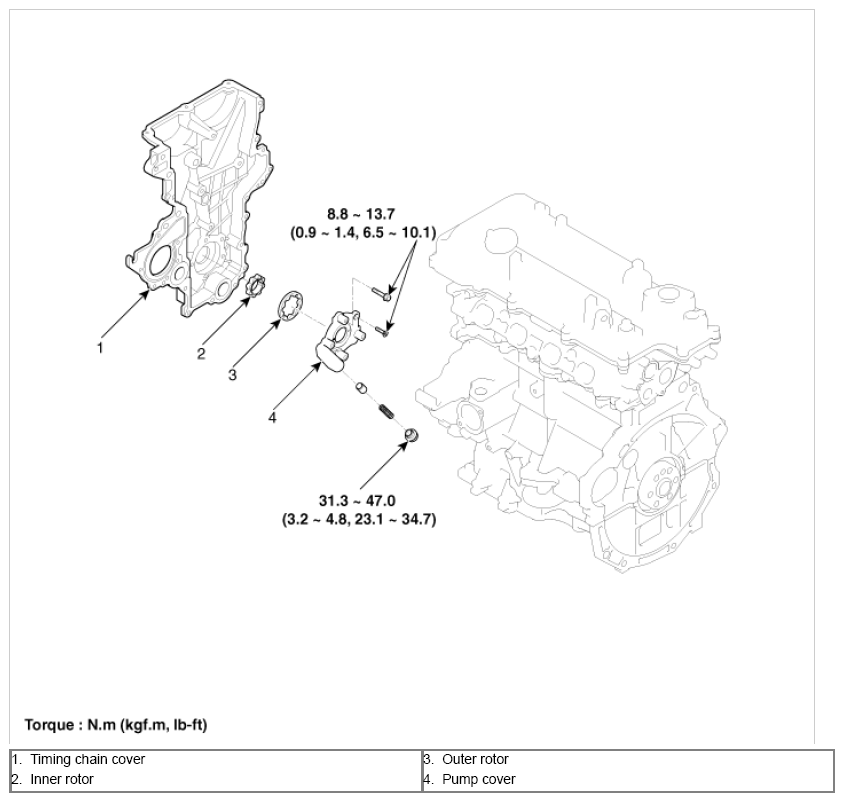

Fig 1: Exploded View Of Oil Pump
G09746742Courtesy of KIA MOTORS AMERICA, INC.
