Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine room front under cover (A).
    Fig 1: Engine Room Front Under Cover
    G09750182Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the ambient temperature sensor connector (A).
  4. Remove the ambient temperature sensor (B).

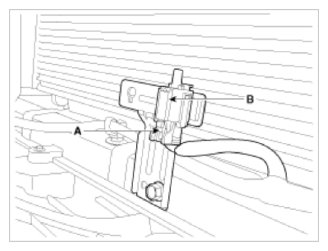

    Fig 2: Ambient Temperature Sensor & Connector
    G09750183Courtesy of KIA MOTORS AMERICA, INC.
