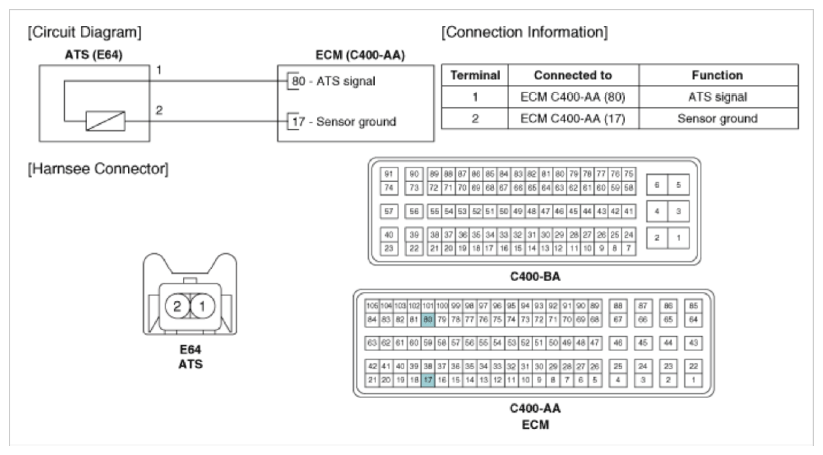

Home › Kia › 2014 › Forte5 SX, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Ambient Temperature Sensor (ATS) › Schematic Diagrams › Circuit Diagram › (A/T)
