Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duck (A).

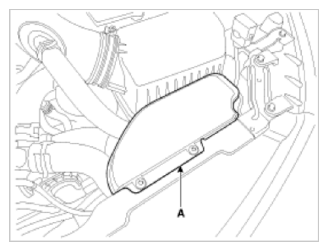

    Fig 1: Removing Air Duck
    G09750262Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  4. Remove the RCV control solenoid valve (D) by loosening the mounting bolts (C).

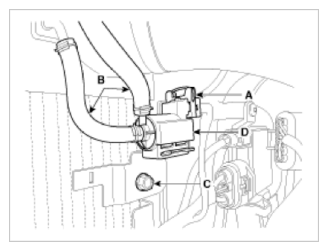

    Fig 2: RCV Control Solenoid Valve Connector, Vapor Hoses & Mounting Bolts
    G09750263Courtesy of KIA MOTORS AMERICA, INC.
