Repair Procedures: Removal

Disconnect the battery negative terminal.
Remove the engine cover.
Disconnect the ignition coil connector (A).

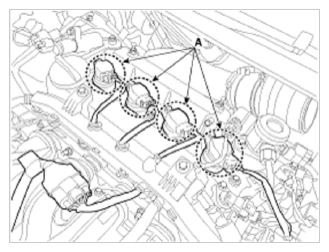

Fig 1: Identifying Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
Fig 2: Pulling Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

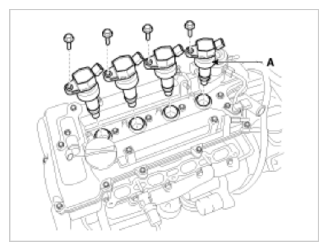

Fig 3: Identifying Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
