Engine Control System - 2.0L - Optima
›
CVVT Oil Temperature Sensor (OTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

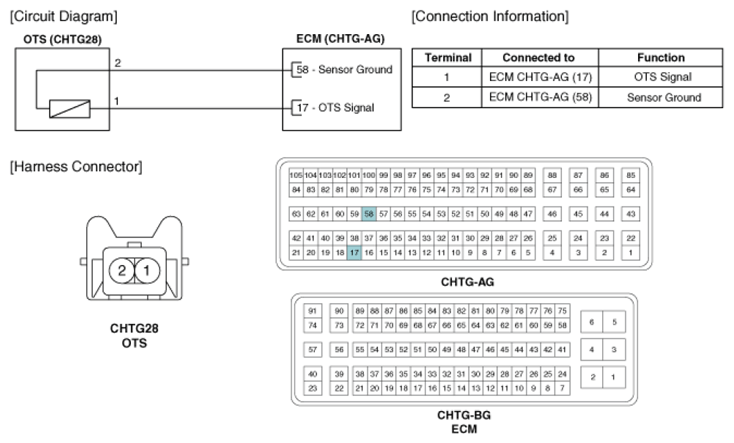

Fig 1: CVVT Oil Temperature Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
