Components Location: Notes

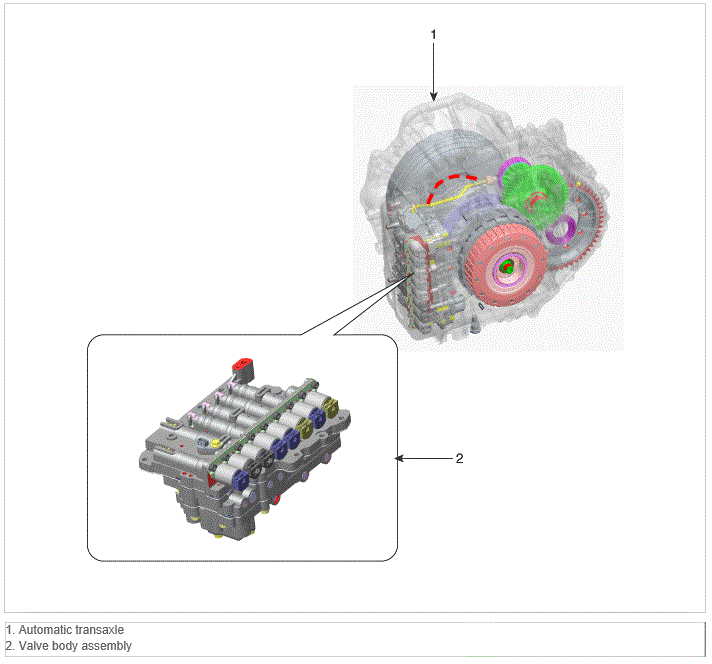

Fig 1: Identifying Valve Body Assembly
G00548541Courtesy of KIA MOTORS AMERICA, INC.

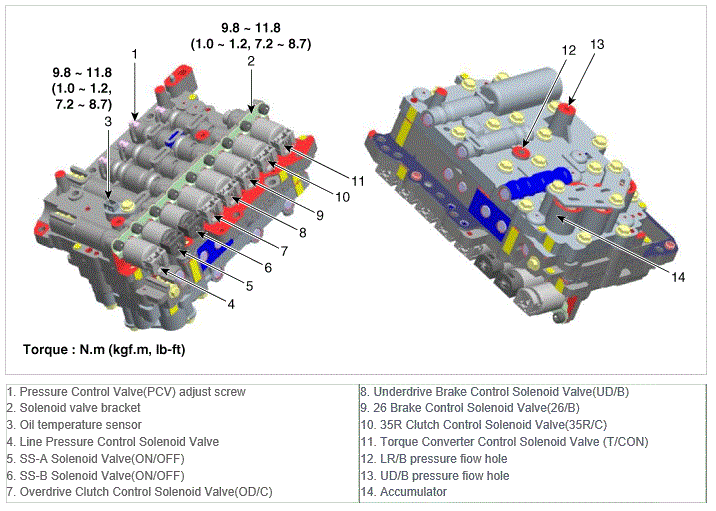

Fig 2: Valve Body Replacement Components With Torque Specifications
G00548545Courtesy of KIA MOTORS AMERICA, INC.
