Smart Key Control Module Connector End View (M32-C)
Smart Key Control Module Connector End View (M32-C)

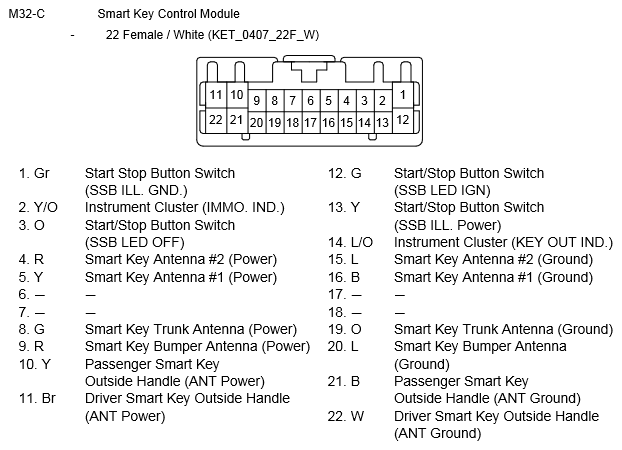

Fig 1: Smart Key Control Module Connector End View (M32-C)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
