Repair Procedures: Removal

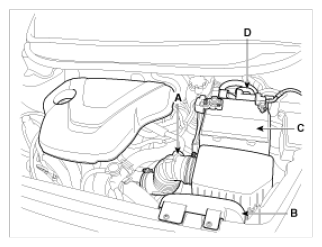

Remove the following items;
1. Air cleaner assembly (A) and air duct (B).
  (Refer to "INTAKE AND EXHAUST SYSTEM " )
2. Battery and battery tray (C).
  (Refer to "CHARGING SYSTEM " )
3. ECM (D).
  (Refer to "ENGINE CONTROL SYSTEM " )

  Fig 1: Identifying Air Cleaner Assembly, Air Duct, Battery Tray And ECM
  Courtesy of KIA MOTORS AMERICA, INC.

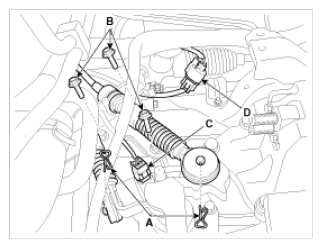

Remove the following items;
1. Remove the pin (A) and washer.
2. Remove the shift cable bracket bolts (B).
  Tightening torque:

  14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)
3. Disconnect the back up lamp switch connector (C) and vehicle speed sensor connector (D).

  Fig 2: Identifying Back Up Lamp Switch Connector, Vehicle Speed Sensor Connector, Shift Cable Bracket Bolts And Pin
  Courtesy of KIA MOTORS AMERICA, INC.

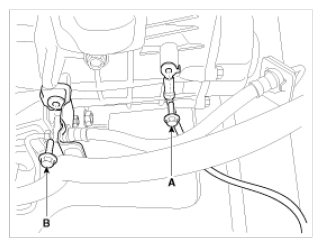

Remove the ground cable bolt (A) and tube bracket bolt (B).
Tightening torque:

14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

Fig 3: Identifying Ground Cable And Tube Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

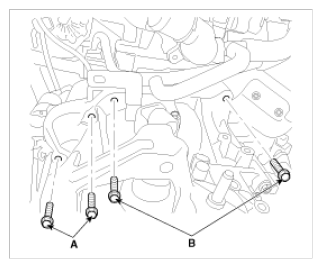

Remove the transaxle upper mounting bolt (B-2ea) and the start motor mounting bolt (A-2ea).
Tightening torque:

(A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 4: Identifying Transaxle Upper And Start Motor Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to COWL TOP COVER .

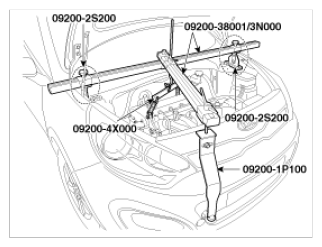

Using the engine support fixture (Support SST No.: 09200-2S200, Adapter SST No.: 09200-1P000, 4X000, Beam SST No.: 09200-38001/3N000), hold the engine and transaxle assembly safely.

Fig 5: Securing Engine And Transaxle Assembly Using Tools
Courtesy of KIA MOTORS AMERICA, INC.

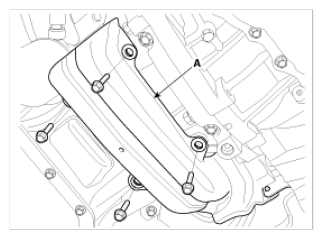

Remove the mounting cover (A).

Fig 6: Identifying Mounting Cover
Courtesy of KIA MOTORS AMERICA, INC.

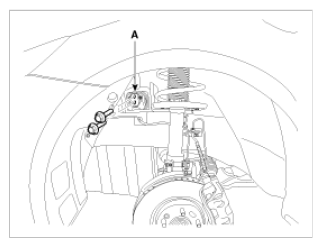

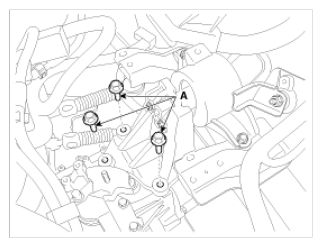

Remove the transaxle support mounting bracket bolts (A-2ea).

Fig 7: Identifying Transaxle Support Mounting Bracket Bolts (A-2ea)
Courtesy of KIA MOTORS AMERICA, INC.

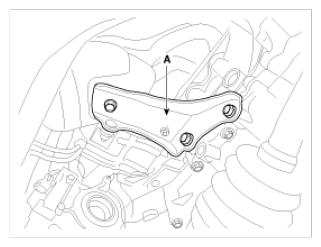

Remove the transaxle support mounting bracket bolts (A-3ea).
Tightening torque:

58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Fig 8: Identifying Transaxle Support Mounting Bracket Bolts (A-3ea)
Courtesy of KIA MOTORS AMERICA, INC.
Lifting up the vehicle.

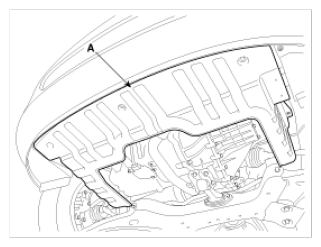

Remove the under cover (A).

Fig 9: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

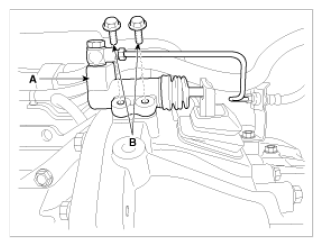

Remove the clutch release cylinder assembly (A) by removing bolts (B-2ea).
Tightening torque:

14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

Fig 10: Identifying Clutch Release Cylinder Assembly And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to FRONT DRIVESHAFT ) .
Remove the drive shaft cover (A).

Fig 11: Identifying Drive Shaft Cover
Courtesy of KIA MOTORS AMERICA, INC.

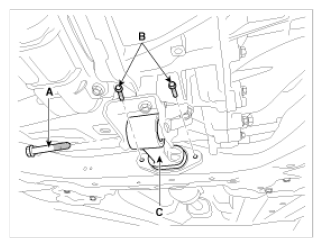

Remove the brackets (A).

Fig 12: Identifying Drive Shaft Brackets
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod bracket (C) after removing bolt (A, B).
Tightening torque:

(A) 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

(B) 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)

Fig 13: Identifying Roll Rod Bracket And Bolt
Courtesy of KIA MOTORS AMERICA, INC.

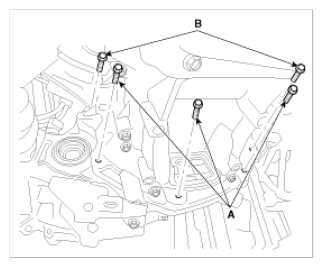

Remove the mounting bolts (A-3ea, B-2ea) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.
CAUTION: Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.

Tightening torque:

(A) 43 ~ 49 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

(B) 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 14: Identifying Transaxle Mounting Bolts (A-3ea, B-2ea)
