Repair Procedures: Inspection

Check for continuity between terminal and terminal while operating the auto light switch.

Fig 1: Auto Light Switch Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

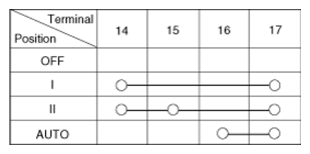

Fig 2: Auto Light Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
