Repair Procedures: Disassembly

1. Separate the hub & bearing assembly (A) from the knuckle (B) by loosening the bolts.

Tightening torque N.m (kgf.m, lb-ft):

160 ~ 180 (16.0 ~ 18.0, 116 ~ 130)

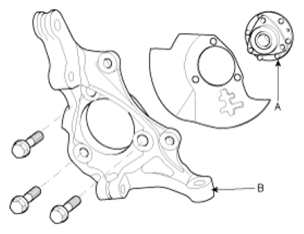

Fig 1: Knuckle, Hub & Bearing Assembly

Courtesy of KIA MOTORS AMERICA, INC.
