Kia
›
2014
›
Sedona EX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

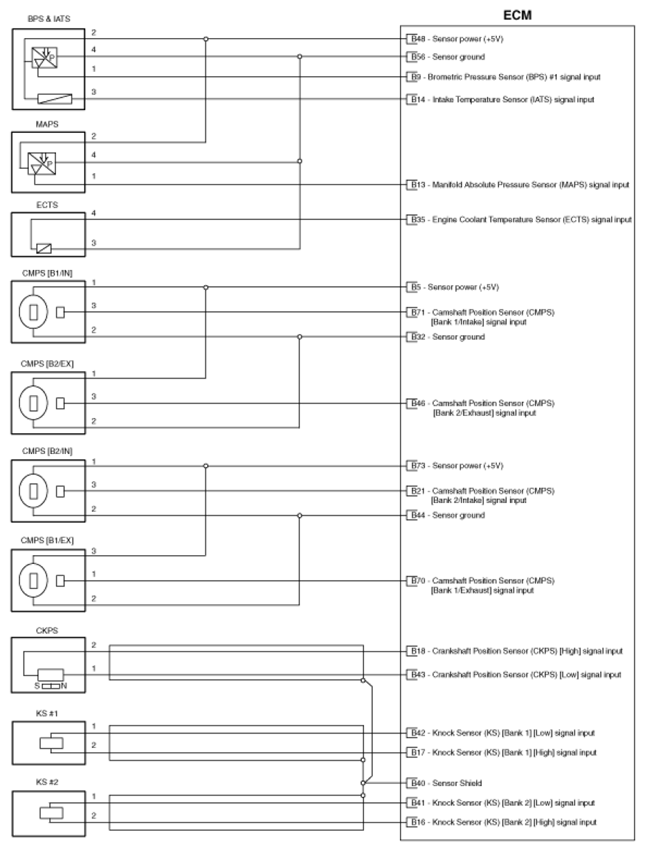

Fig 1: ECM - Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

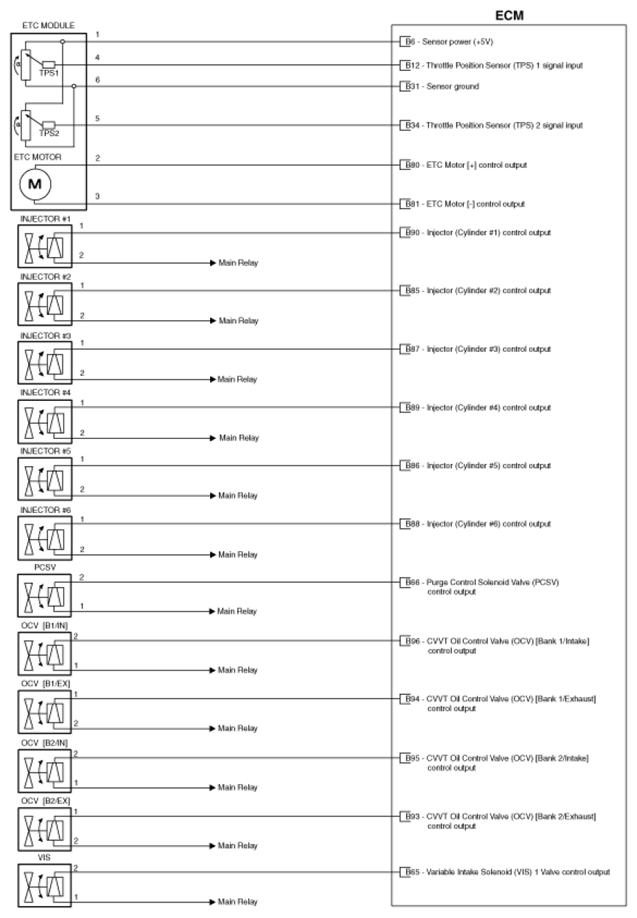

Fig 2: ECM - Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

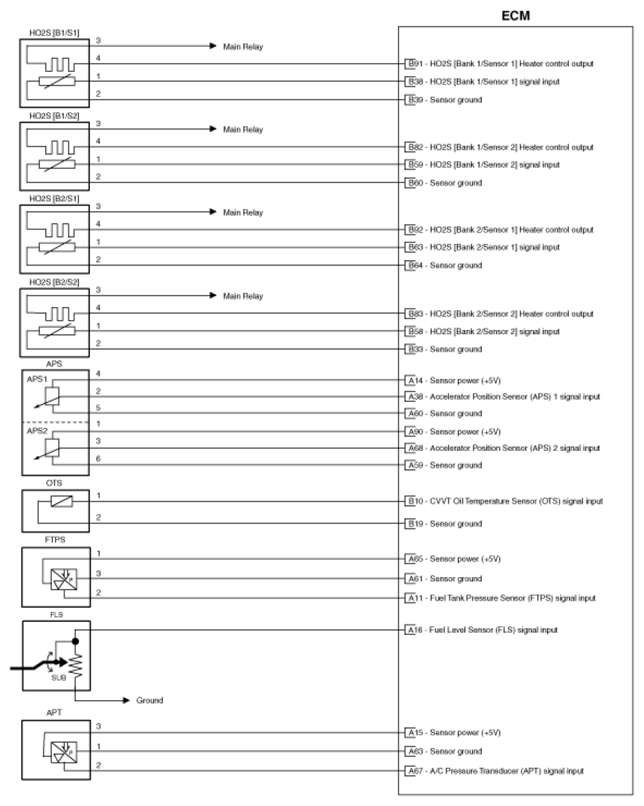

Fig 3: ECM - Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

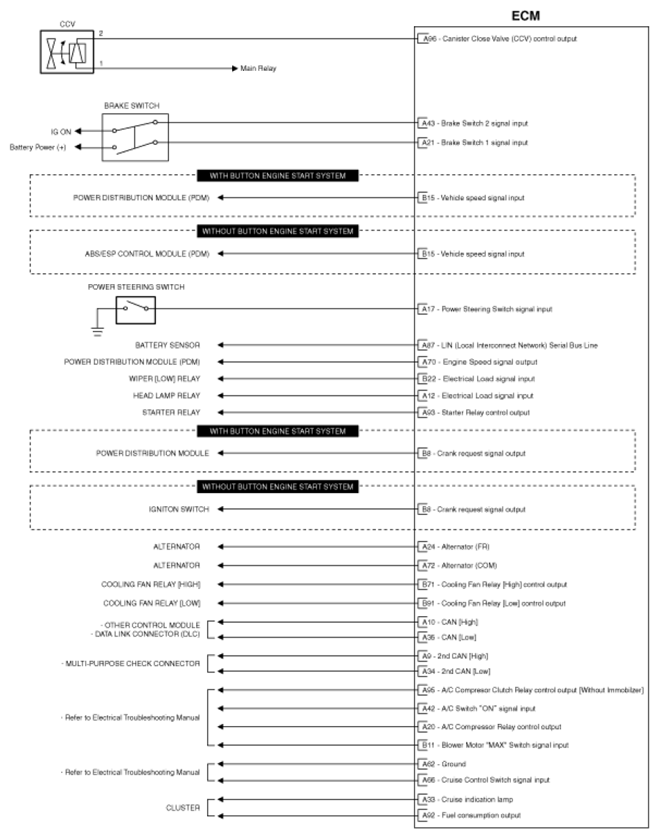

Fig 4: ECM - Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

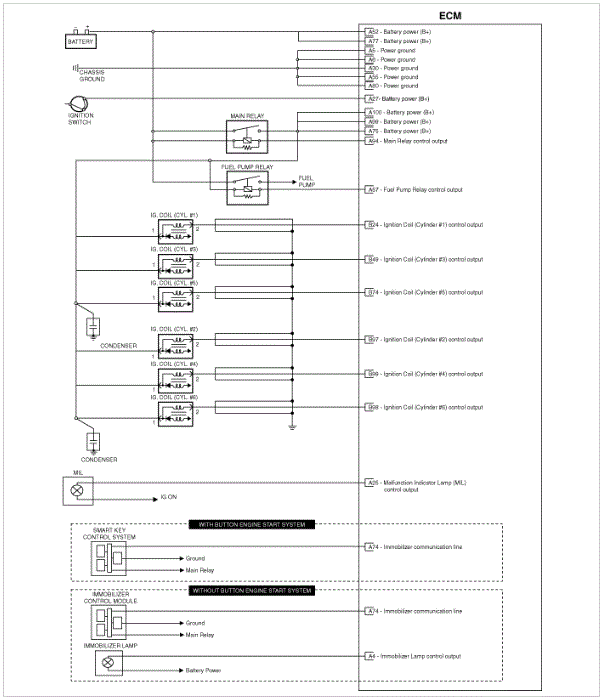

Fig 5: ECM - Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
