2014
›
Sedona EX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Heated Oxygen Sensor (HO2S)
›
Troubleshooting
›
Wave Form
Wave Form

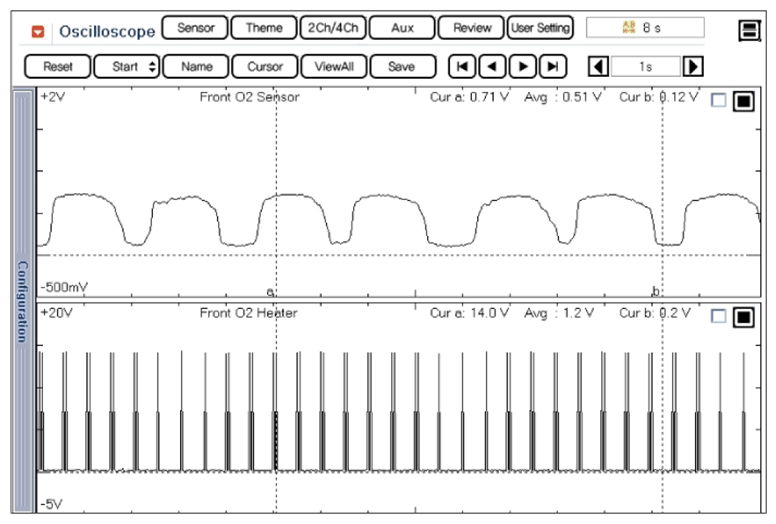

Fig 1: Screen Display - Front O2 Sensor Waveform
Courtesy of KIA MOTORS AMERICA, INC.

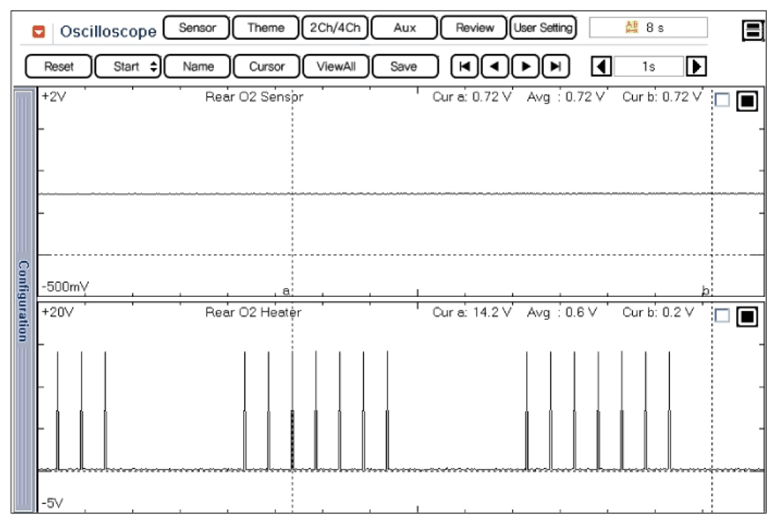

Fig 2: Screen Display - Rear O2 Sensor Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
