Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the VCMA connector (A).

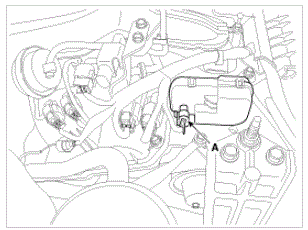

    Fig 1: VCMA Connector
    G00547159Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the bolts (A) securing the VCMA to the intake manifold.
  4. Separate the VCMA linkage rod (B) from the attachment point on the VCMA lever using a trim clip removal tool.
    Fig 2: VCMA Bolts & Linkage Rod
    G00547160Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the VCMA from the vehicle.
